Tapered Roller Bearings - TS (Tapered Single)

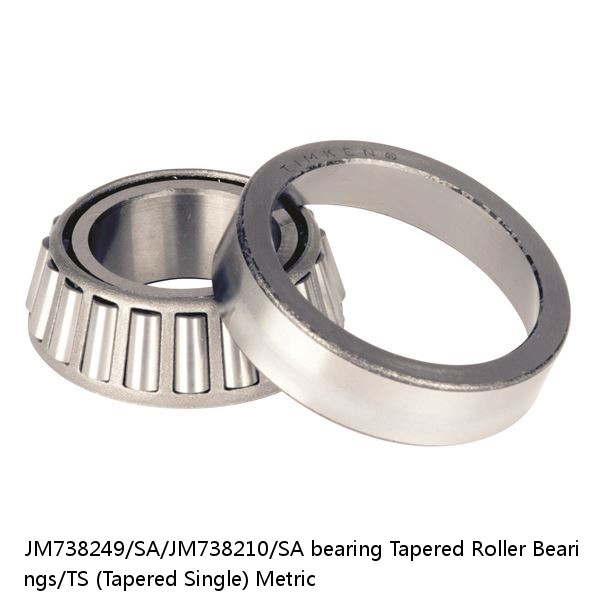

JM738249/SA/JM738210/SA bearing | Tapered Roller Bearings/TS (Tapered Single) Metric

Buy Now
Contact Now

Price：	enquiry
Model Number：	JM738249/SA/JM738210/SA
Series：	46.000 mm1.8110 in
r - Cup Backface "To Clear" Radius²：	M738200
Design Units：	2.54 mm0.1 in
Db - Cup Backface Backing Diameter：	3.050 mm0.12 in
da - Cone Frontface Backing Diameter：	146.7

Series	M738200
Cone Part Number	JM738249-SA
Cup Part Number	JM738210-SA
Design Units	METRIC
Bearing Weight	6.8 Kg15.10 lb
Cage Type	Stamped Steel
d - Bore	190 mm7.4803 in
D - Cup Outer Diameter	260 mm10.2362 in
B - Cone Width	44.000 mm1.7323 in
C - Cup Width	36.500 mm1.4370 in
T - Bearing Width	46.000 mm1.8110 in
R - Cone Backface "To Clear" Radius¹	3.050 mm0.12 in
r - Cup Backface "To Clear" Radius²	2.54 mm0.1 in
da - Cone Frontface Backing Diameter	199.9 mm7.87 in
db - Cone Backface Backing Diameter	205.99 mm8.11 in
Da - Cup Frontface Backing Diameter	252.22 mm9.93 in
Db - Cup Backface Backing Diameter	242.06 mm9.53 in
Ab - Cage-Cone Frontface Clearance	4.8 mm0.19 in
Aa - Cage-Cone Backface Clearance	2.5 mm0.1 in
a - Effective Center Location³	10.9 mm0.43 in
C90 - Dynamic Radial Rating (90 million revolutions)⁴	105000 N23700 lbf
C1 - Dynamic Radial Rating (1 million revolutions)⁵	407000 N91500 lbf
C0 - Static Radial Rating	807000 N181000 lbf
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	86200 N19400 lbf
K - Factor⁷	1.22
e - ISO Factor⁸	0.48
Y - ISO Factor⁹	1.26
G1 - Heat Generation Factor (Roller-Raceway)	653.1
G2 - Heat Generation Factor (Rib-Roller End)	146.7
Cg - Geometry Factor¹⁰	0.126
