- Thrust Spherical Roller Bearings-Type TSR
- 29434EJ

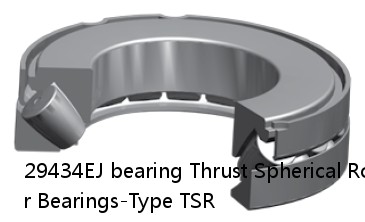

29434EJ bearing | Thrust Spherical Roller Bearings-Type TSR
29434EJ PDF download| Price： | enquiry |
| Model Number： | 29434EJ |
| Weight： | 39.70 Kg87.4 lb |
| Thermal Speed Rating： | 1100 rpm |
| T3 - Cup Width： | 50.00 mm1.969 in |
| T1 - Cage Position： | 89.00 mm3.500 in |
| T - Total Width： | 103.00 mm4.055 in |
| UPC Code | 87796358072 |
| Weight | 39.70 Kg87.4 lb |
| Bearing Type | Thrust Spherical Roller Bearings - TSR |
| d - Bore | 170.00 mm6.693 in |
| D - Outside Diameter | 340.000 mm13.386 in |
| d1 - Cone Outside Diameter | 297.70 mm11.721 in |
| D1 - Cup Bore | 236.00 mm9.291 in |
| E - Shoulder Diameter - Housing (Max) | 251.00 mm9.880 in |
| H - Shoulder Diameter - Shaft (Min) | 270.00 mm10.630 in |
| r - Fillet Radius | 4.0 mm0.157 in |
| S - Dimension | 104.00 mm4.095 in |
| T - Total Width | 103.00 mm4.055 in |
| T1 - Cage Position | 89.00 mm3.500 in |
| T3 - Cup Width | 50.00 mm1.969 in |
| T4 - Cone Width | 65.50 mm2.579 in |
| Static Load Rating | 6140 kN1380000 lbf |
| Dynamic Load Rating | 2380 kN536000 lbf |
| Thermal Speed Rating | 1100 rpm |
| No. | Weight | Thermal Speed Rating | T3 - Cup Width | T1 - Cage Position | T - Total Width | Static Load Rating |
|---|---|---|---|---|---|---|
| VAS 7/8 | 1.671 lb0.758 Kg | 1.406 in35.7 mm | 139.70 mm5.500 in | 71.4 mm2.811 in | 1750 lbf7800 N | 7/8 in22.2 mm |
| 7203ADT | Standard | 17 | 0.6 | 0.6 | 7203ADT | 22000 |
| 3878A/3821 | 1.49 | 30.165 mm1.1876 in | 3800 | 1.27 mm0.050 in | 3.560 mm0.14 in | 1.45 |
| NKJ20/16A | 20 | 0.3 | NKJ20/16A | 18000 | 24 | 32 |
| 7824CDB | 120 | 0.60 | 1.0 | 7824C | 0.53 | 6 300 |
| UCSF211-35JEH1S6 | A-R1/8 N12 | Normal-duty (2) | UCSF211-35JEH1S6 | Standard | 2 3/16 | - |
| ALL96 | ALL96 | 7.29 | ANL96,ANL100 | 38.0 | 15 | 28.0 |
| 51188 F | 850 | 600 | 55.0 | 3250.0 | 527.0 | 0.00 |
| SNL 519-616 + C 2316 | SNL 519-616 | 112 | 212 | SNL 519-616 + C 2316 | 145 | - |
| DC 16 | DC 16 | - | - | - | - | - |
