Ball Bearing Housed Units (Includes R, V, Y & S Series)

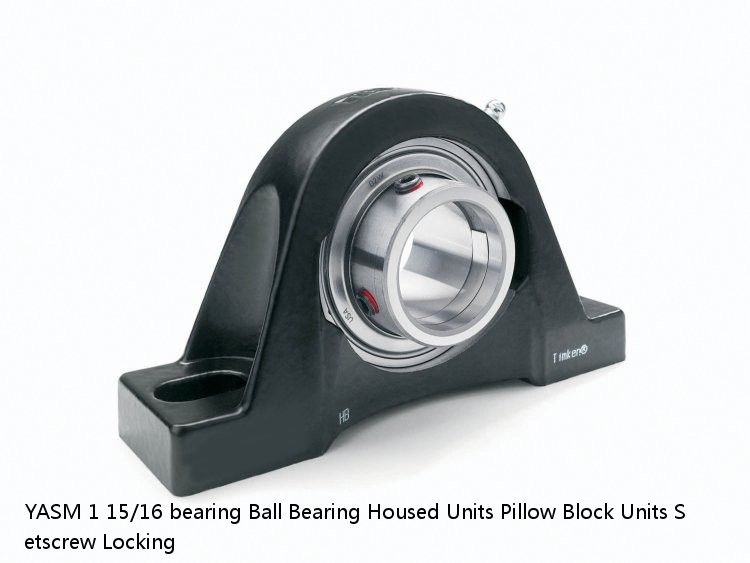

YASM 1 15/16 bearing | Ball Bearing Housed Units Pillow Block Units Setscrew Locking

Buy Now
Contact Now

Price：	enquiry
Model Number：	YASM 1 15/16
Weight：	7.908 lb3.59 Kg
Bearing Number：	2.157 in54.8 mm
Housing Construction：	222.3 mm8.752 in
UPC Code：	126.2 mm4.969 in
Shaft Size Type：	6570 lbf29200 N

Shaft Size d	1 15/16 in49.2 mm
Bearing Type	Ball Bearing
Bearing Number	GYM1115KRRB
Inside Ring Outside Diameter	2.747 in69.8 mm
Dimension T	1.079 in27.4 mm
Dimension D1	2.747 in69.77 mm
Series	Industrial
Weight	7.908 lb3.59 Kg
Seal Type	Shroud Seal
Housing Construction	Two-Bolt Pillow Block
Alternate Part Name	YASM1 15/16
base to Center Height H	63.5 mm2.50 in
Total Length L	222.3 mm8.752 in
Total Width A	2.157 in54.8 mm
Bolt Hole Spacing J	176.2 mm6.937 in
Bolt Hole Width N	18.26 mm0.719 in
Bolt Hole Length N1	29.46 mm1.160 in
Foot Height H1	20.6 mm0.811 in
Total Height H2	126.2 mm4.969 in
Dimension L1	74.1 mm2.917 in
Inside Ring Width B	=Bearings1_Inside Ring Width= mm=Bearings1_Inside Ring Width= in
Center of Bearing from End S	22.3 mm0.878 in
Dimension B1	2.189 in55.6 mm
Static Load Rating	6570 lbf29200 N
Dynamic Load Rating	10800 lbf48100 N

No.	Weight	Bearing Number	Housing Construction	UPC Code	Shaft Size Type	Full Timken Part Number
B-3416	B-3416	22.80	53.975	25.400	-	63.500
6020/NR/C3	1.25 Kg	1.500 mm	24.000 mm	150.000 mm	6900 rpm	4800 rpm
51318	1.5	1.5	90	51318	1700	3.830
24140EMBW33C2	1.7	2.59	1.74	850	790	2.5 mm0.100 in
6003/C3	0.040 Kg	0.300 mm	10.000 mm	35.000 mm	28000 rpm	19000 rpm
CFE 30VUU	438.0	41	1.0	8	49	41
7205 FY	25	0.600	1.000	19000	15000	7205FY
SY 25 WF	7000	7.8	14	SY 505 M	SY 25 WF	YEL 205-2F
E/PF/TRB/2 1/2/ECO	2.63	2.17	0.7	0.87	17.0 lb	0883450507851
LME 162636N F UU OP	Both side Seal (UU)	Stainless	LME 162636N F UU OP	Plastic	16	-
