Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
- DVC11K050S

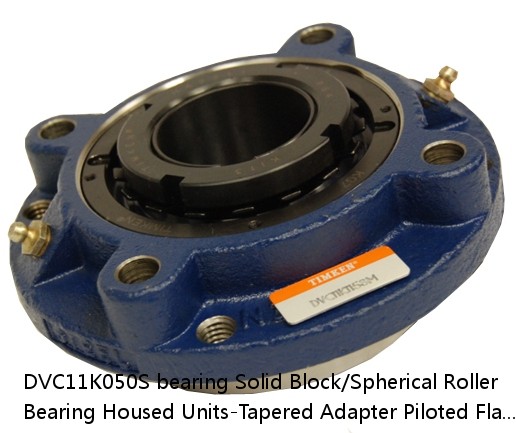

DVC11K050S bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Piloted Flange Cartridge
DVC11K050S PDF download| Price： | enquiry |
| Model Number： | DVC11K050S |
| Weight： | 4.40 |
| Bearing Number： | 2.95 |
| Housing Construction： | 11.0 lb5.0 Kg |
| UPC Code： | 0883450003520 0883450003537 0883450003551 0883450003568 0883450003575 0883450003582 0883450003599 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22211 |
| Shaft Size | 50 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | DVC11K050SB DVC11K050SC DVC11K050SEB DVC11K050SEC DVC11K050SEM DVC11K050SEN DVC11K050SEO DVC11K050SET DVC11K050SM DVC11K050SN DVC11K050SO DVC11K050ST |
| Locking Style | Tapered Adapter |
| Weight | 11.0 lb5.0 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450003520 0883450003537 0883450003551 0883450003568 0883450003575 0883450003582 0883450003599 0883450003605 0883450196857 0883450197052 0883450274364 0883450274562 |
| Dimension BC | 5.38 in136.7 mm |
| Dimension C | 2.950 in74.90 mm |
| Dimension E | 3.80 in96.5 mm |
| Dimension F | 6.38 in162.1 mm |
| Dimension H | 1.24 in31.5 mm |
| Dimension I | 2.45 in62.2 mm |
| Dimension J (Bolt Size) | 0.438 in10 mm |
| Dimension L | 2.49 in63.2 mm |
| Dimension M | 1.4 in35.6 mm |
| Dimension R | 0.16 in4.1 mm |
| Dimension S | 2.32 in58.9 mm |
| Dimension G | 4.500 in114.3 mm |
| Dimension N | 1.00 in25.4 mm |
| C0 - Static Load | 31900 lb142 kN |
| C - Dynamic Load (Basic) | 31400 lb140 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.95 |
| Y2 - Geometry Factor | 4.40 |
| Oil Lubrication - M/N Seal | 2200 rpm |
| Oil Lubrication - T Seal | 3800 rpm |
| Oil Lubrication - B/C/O Seal | 1800 rpm |
| Grease Lubrication - M/N Seal | 2200 rpm |
| Grease Lubrication - T Seal | 3200 rpm |
| Grease Lubrication - B/C/O Seal | 1600 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0037 in0.094 mm |
| Int Radial Clearance Reduction Min | 0.0012 in0.030 mm |
| Int Radial Clearance Reduction Max | 0.0015 in0.038 mm |
| Adapter Sleeve Axial Movement Min | 0.018 in0.457 mm |
| Adapter Sleeve Axial Movement Max | 0.022 in0.559 mm |
| Post Install Int Radial Clearance Min | 0.0015 in0.038 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| SNL 3038 G + 24038 | 530 | SNL 3038 G + 24038 | 353 | SNL 3038 G + 24038 | 190.000 | 290.000 |
| 32020XU | 32.00 | 100 | 1.5 | 2.0 | 32020XU | 1.91 |
| 23236RR | 4.0 | 23236RR | 1400 | 1100 | 320 | 134 |
| 7334ADF | Standard | 170 | 3.0 | 4.0 | 7334ADF | 1700 |
| C 39/750 KM | 560 | 430 | - | 750.000 | 815.000 | 13400.000 |
| 53307 | 4500 | 3200 | 3.5 | 96.5 | 49.4 | 28.00 |
| SAF 22516 | LOR 44 | Triple Ring Seal | SAF 516 | 6.875 in | SAF22516 | 9.6250 in |
| 7338B | 190 | 2.00 | 5.0 | 7338B | 47.000 | 2 000 |
| NU2219 | 95 | 2.1 | 2.1 | 4400 | 3300 | NU2219 |
| 4T-2788/2720 | 38.100 | 3.3 | 3.5 | 4T-2788/2720 | 0,5 | 76.200 |
