Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four Bolt Square Flange Block
- QVVFB17V215S

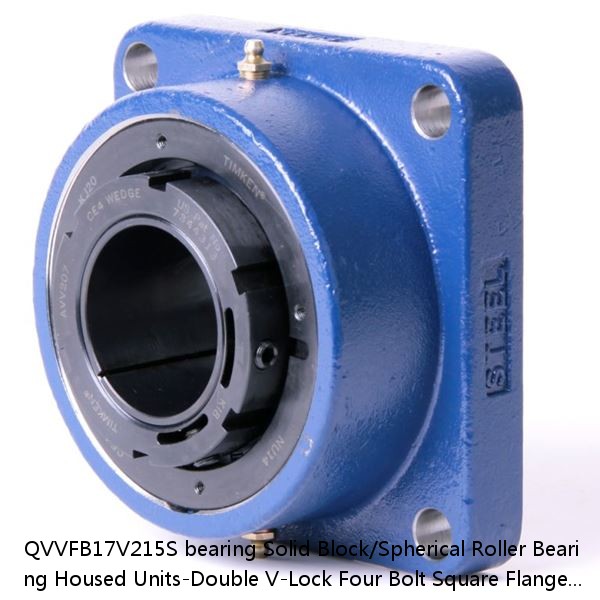

QVVFB17V215S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four Bolt Square Flange Block
QVVFB17V215S PDF download| Price： | enquiry |
| Model Number： | QVVFB17V215S |
| Weight： | 4.31 |
| Bearing Number： | 2.90 |
| Housing Construction： | 30 lb13.6 Kg |
| UPC Code： | 0883450209816 0883450209960 0883450222242 0883450222396 0883450234733 0883450234887 0883450243414 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22217 |
| Shaft Size | 2-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVFB17V215SB QVVFB17V215SC QVVFB17V215SEB QVVFB17V215SEC QVVFB17V215SEM QVVFB17V215SEN QVVFB17V215SEO QVVFB17V215SET QVVFB17V215SM QVVFB17V215SN QVVFB17V215SO QVVFB17V215ST |
| Locking Style | Double V-Lock |
| Weight | 30 lb13.6 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450209816 0883450209960 0883450222242 0883450222396 0883450234733 0883450234887 0883450243414 0883450243568 0883450248372 0883450248525 0883450980685 0883450980692 |
| Dimension BC | 9.45 in240 mm |
| Dimension A | 11.12 in282.4 mm |
| Dimension C | 4.19 in106.4 mm |
| Dimension D | 7.480 in190.000 mm |
| Dimension E | 6.68 in169.7 mm |
| Dimension F | 8.35 in212.1 mm |
| Dimension H | 1.00 in25.4 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension G | 1 in25.4 mm |
| Dimension L | 3.3 in83.8 mm |
| Dimension N | 2.7500 in69.9 mm |
| Dimension RVV | 0.88 in22.4 mm |
| Dimension SVV | 4.18 in106.2 mm |
| C - Dynamic Load (Basic) | 66900 lb297 kN |
| C0 - Static Load | 71900 lb320 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.31 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Oil Lubrication - B/C/O Seal | 1100 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Grease Lubrication - B/C/O Seal | 1100 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0037 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0037 in0.095 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| E/TTU/TRB/2 3/16/ECC | 2.87 | 2.38 | 0.7 | 0.87 | 16 lb | 0883450505017 |
| 23172EJW507C08C4 | 2.24 | 3.42 | 2.29 | 23172CJW507C08C4 | 590 | 530 |
| GE 25ES | 25 | 0.6 | 0.6 | 35.5 | 29.0 | 29.0 |
| 6024/RS | 2.03 Kg | 2.000 mm | 28.000 mm | 180.000 mm | 6100 rpm | 4200 rpm |
| 6256 | 280 | 5.0 | 71.000 | 1000 | 500 | 400000 |
| 395 A/394 A | 22.000 | 6000 | 4800 | 13.400 | 118.000 | 108.000 |
| 24044EMBW33C08C3 | 2.09 | 3.18 | 2.14 | 1200 | 1000 | 2.5 mm0.100 in |
| 7232DF | 160 | 1.10 | 3.0 | 27.400 | 2000 | 1500 |
| E/P4B/TRB/4/ECO/ECO | 2.14 | 1.77 | 0.7 | 0.87 | 71.000 lb | 0883450509251 |
| DCS502B-0050-51-21P2000 | 25 | 45 | DCS502B-0050-51-21P2000 | 25 | 44 | C1 |
