Single V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Piloted Flange Cartridge
- QVC16V075S

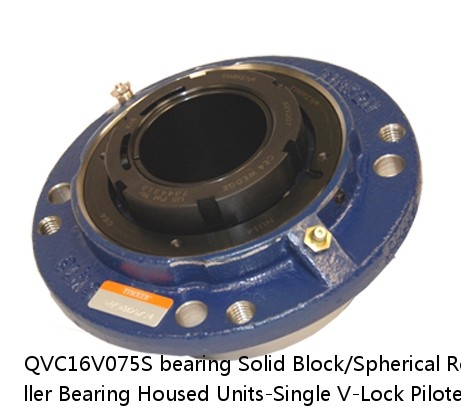

QVC16V075S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Piloted Flange Cartridge
QVC16V075S PDF download| Price： | enquiry |
| Model Number： | QVC16V075S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 22.00 lb10.00 Kg |
| UPC Code： | 0883450037396 0883450061353 0883450105071 0883450105118 0883450184113 0883450213042 0883450213424 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22216 |
| Shaft Size | 75 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVC16V075SB QVC16V075SC QVC16V075SEB QVC16V075SEC QVC16V075SEM QVC16V075SEN QVC16V075SEO QVC16V075SET QVC16V075SM QVC16V075SN QVC16V075SO QVC16V075ST |
| Locking Style | Single V-Lock |
| Weight | 22.00 lb10.00 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450037396 0883450061353 0883450105071 0883450105118 0883450184113 0883450213042 0883450213424 0883450225465 0883450225847 0883450237888 0883450238267 0883450295277 |
| Dimension BC | 7.50 in190.5 mm |
| Dimension C | 4.190 in106.40 mm |
| Dimension E | 5.30 in134.6 mm |
| Dimension B Fix | 2.08 in52.8 mm |
| Dimension B Exp | 2.16 in54.9 mm |
| Dimension F | 8.75 in222.3 mm |
| Dimension H | 0.81 in20.6 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension L | 3.33 in84.6 mm |
| Dimension RV | 0.04 in1.0 mm |
| Dimension SV | 3.29 in83.6 mm |
| Dimension G | 6.375 in161.9 mm |
| Dimension N | 1.25 in31.8 mm |
| C0 - Static Load | 62500 lb278 kN |
| C - Dynamic Load (Basic) | 57200 lb254 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1500 rpm |
| Oil Lubrication - T Seal | 2650 rpm |
| Oil Lubrication - B/C/O Seal | 1200 rpm |
| Grease Lubrication - M/N Seal | 1500 rpm |
| Grease Lubrication - T Seal | 2200 rpm |
| Grease Lubrication - B/C/O Seal | 1150 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0037 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0037 in0.095 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 432217XU | 85 | 0.6 | 2.5 | 432217XU | 5.850 | 2700 |
| KMJ30x36x14V2 | KMJ30x36x14V2 | 0.021 | 13000 | 8500 | 30 | 36 |
| 7309BDT | 45 | 1.00 | 1.5 | 7309B | 0.850 | 8 900 |
| CF 5 | CF 5 | 0.500 | - | - | - | - |
| TA 3820Z | 38 | TA 3820Z | 65.50 | 38 | 48 | 27700 |
| SNW-117X2-13/16 | HMVC 17E | AN 17 | SNW-117X2-13/16 | 112.039 | 71.438 | 85.000 |
| 22208EXQ | 40 | 1.1 | 0.56 | 8900 | 7400 | 80 |
| NU2316R | 80 | 2.1 | 2.1 | 4700 | 3100 | NU2316R |
| E/PF/TRB/4 1/2/ECO | 1.97 | 1.63 | 0.7 | 0.87 | 110.000 lb | 0883450508001 |
| 28138/28317 | 1.49 | 21.435 mm0.8439 in | 28000 | 1.52 mm0.06 in | 1.520 mm0.06 in | 1.45 |
