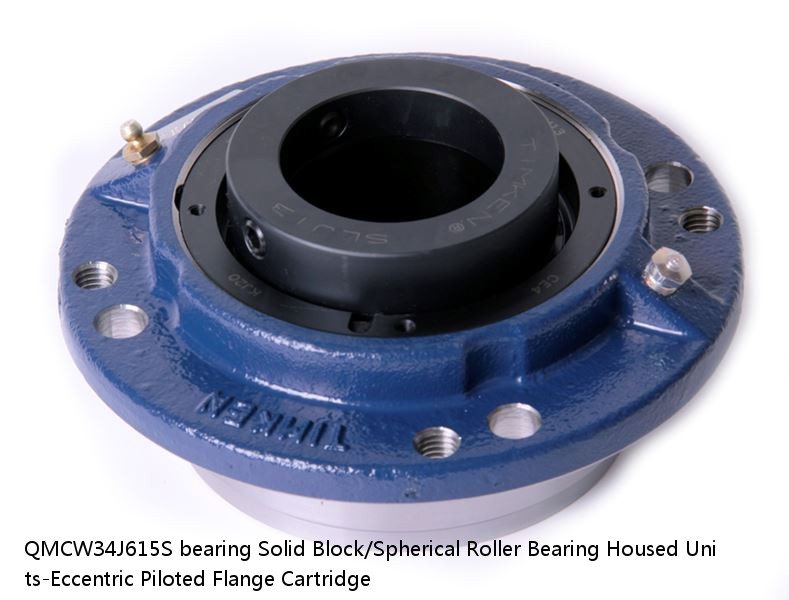

QMCW34J615S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
QMCW34J615S PDF download| Price： | enquiry |
| Model Number： | QMCW34J615S |
| Weight： | 3.09 |
| Bearing Number： | 2.08 |
| Housing Construction： | 336 lb152.4 Kg |
| UPC Code： | 0883450382724 0883450382731 0883450382748 0883450382755 0883450382762 0883450382779 0883450382786 08 |
| Shaft Size Type： | 0.0050 in0.127 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 23234 |
| Shaft Size | 6-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMCW34J615SB QMCW34J615SC QMCW34J615SEB QMCW34J615SEC QMCW34J615SEM QMCW34J615SEN QMCW34J615SEO QMCW34J615SET QMCW34J615SM QMCW34J615SN QMCW34J615SO QMCW34J615ST |
| Locking Style | Eccentric |
| Weight | 336 lb152.4 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450382724 0883450382731 0883450382748 0883450382755 0883450382762 0883450382779 0883450382786 0883450382793 0883450382809 0883450382816 0883450382823 0883450382830 |
| Dimension BC | 17.00 in431.8 mm |
| Dimension C | 9.2500 in235.00 mm |
| Dimension E | 8.500 in215.90 mm |
| Dimension B Fix | 3.38 in85.9 mm |
| Dimension B Exp | 3.46 in87.9 mm |
| Dimension F | 19.00 in482.6 mm |
| Dimension D | 14.00 in355.6 mm |
| Dimension H | 1.13 in28.7 mm |
| Dimension J (Bolt Size) | 1 in24 mm |
| Dimension M | 5.08 in129.0 mm |
| Dimension R | 0.08 in2.0 mm |
| Dimension S | 8.430 in214.10 mm |
| Dimension G | 15.000 in381.00 mm |
| Dimension K | 3.35 in85.1 mm |
| Dimension L Exp | 8.59 in218.2 mm |
| Dimension L Fix | 8.51 in216.2 mm |
| Dimension N | 5.13 in130.3 mm |
| C0 - Static Load | 494000 lb2200 kN |
| C - Dynamic Load (Basic) | 373000 lb1660 kN |
| e - Geometry Factor | 0.33 |
| Y1 - Geometry Factor | 2.08 |
| Y2 - Geometry Factor | 3.09 |
| Oil Lubrication - M/N Seal | 600 rpm |
| Oil Lubrication - T Seal | 900 rpm |
| Oil Lubrication - B/C/O Seal | 350 rpm |
| Grease Lubrication - M/N Seal | 600 rpm |
| Grease Lubrication - T Seal | 800 rpm |
| Grease Lubrication - B/C/O Seal | 350 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0050 in0.127 mm |
| Eng Internal Radial Clearance - Min | 0.0047 |
| Eng Internal Radial Clearance - Max | 0.0071 |
| Pre Install Clearance Min | 0.0047 in0.120 mm |
| Pre Install Clearance Max | 0.0071 in0.180 mm |
