Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
- QMCW34J607S

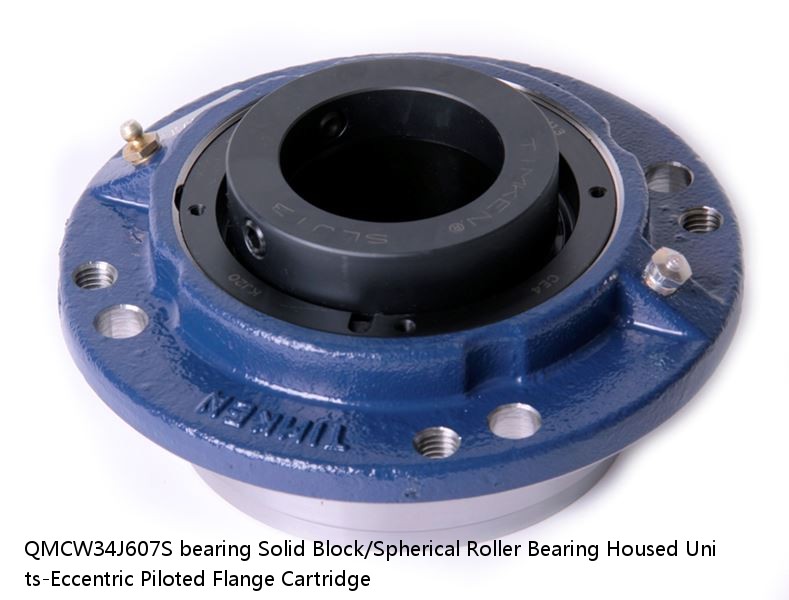

QMCW34J607S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
QMCW34J607S PDF download| Price： | enquiry |
| Model Number： | QMCW34J607S |
| Weight： | 3.09 |
| Bearing Number： | 2.08 |
| Housing Construction： | 336 lb152.4 Kg |
| UPC Code： | 0883450382472 0883450382489 0883450382496 0883450382502 0883450382519 0883450382526 0883450382533 08 |
| Shaft Size Type： | 0.0050 in0.127 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 23234 |
| Shaft Size | 6-7/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMCW34J607SB QMCW34J607SC QMCW34J607SEB QMCW34J607SEC QMCW34J607SEM QMCW34J607SEN QMCW34J607SEO QMCW34J607SET QMCW34J607SM QMCW34J607SN QMCW34J607SO QMCW34J607ST |
| Locking Style | Eccentric |
| Weight | 336 lb152.4 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450382472 0883450382489 0883450382496 0883450382502 0883450382519 0883450382526 0883450382533 0883450382540 0883450382557 0883450382564 0883450382571 0883450382588 |
| Dimension BC | 17.00 in431.8 mm |
| Dimension C | 9.2500 in235.00 mm |
| Dimension E | 8.500 in215.90 mm |
| Dimension B Fix | 3.38 in85.9 mm |
| Dimension B Exp | 3.46 in87.9 mm |
| Dimension F | 19.00 in482.6 mm |
| Dimension D | 14.00 in355.6 mm |
| Dimension H | 1.13 in28.7 mm |
| Dimension J (Bolt Size) | 1 in24 mm |
| Dimension M | 5.08 in129.0 mm |
| Dimension R | 0.08 in2.0 mm |
| Dimension S | 8.430 in214.10 mm |
| Dimension G | 15.000 in381.00 mm |
| Dimension K | 3.35 in85.1 mm |
| Dimension L Exp | 8.59 in218.2 mm |
| Dimension L Fix | 8.51 in216.2 mm |
| Dimension N | 5.13 in130.3 mm |
| C0 - Static Load | 494000 lb2200 kN |
| C - Dynamic Load (Basic) | 373000 lb1660 kN |
| e - Geometry Factor | 0.33 |
| Y1 - Geometry Factor | 2.08 |
| Y2 - Geometry Factor | 3.09 |
| Oil Lubrication - M/N Seal | 600 rpm |
| Oil Lubrication - T Seal | 900 rpm |
| Oil Lubrication - B/C/O Seal | 350 rpm |
| Grease Lubrication - M/N Seal | 600 rpm |
| Grease Lubrication - T Seal | 800 rpm |
| Grease Lubrication - B/C/O Seal | 350 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0050 in0.127 mm |
| Eng Internal Radial Clearance - Min | 0.0047 |
| Eng Internal Radial Clearance - Max | 0.0071 |
| Pre Install Clearance Min | 0.0047 in0.120 mm |
| Pre Install Clearance Max | 0.0071 in0.180 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| HM30/900 | 135.00 Kg | Tr900x7 | 25 mm | 60 mm | 975 mm | 1030 mm |
| SR 130x15.5 20 | - | - | - | - | - | - |
| 7317BDT | Standard | 85 | 2.5 | 3.0 | 7317BDT | 3200 |
| 2MVC9312WI | 1 mm0.039 in | 1 mm0.039 in | 36720 rpm | 18360 rpm | 7.143750 mm9/32 in | METRIC |
| NN49/530K | 18 | 530 | 4 | 5.0 | NN49/530K | 550 |
| CRY 24V | 11.11 | 1.590 | 11.11 | 28.8 | CRY 24V | 186 |
| M-18121 | M-18121 | 28.575 | 34.925 | 8.90 | 27.30 | 58.20 |
| QVVP14V065S | 4.32 | 2.90 | 22.00 lb10.00 Kg | 0883450170758 0883450170949 0883450171120 0883450171502 0883450171694 0883450171885 0883450202275 08 | 0.0015 in0.038 mm | 65 mm |
| SA1 15 | SA1 15 | - | - | - | - | - |
| 4T-32010X | 20.00 | 50 | 1.0 | 1.0 | 4T-32010X | 0.37 |
