Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
- QMCW09J111S

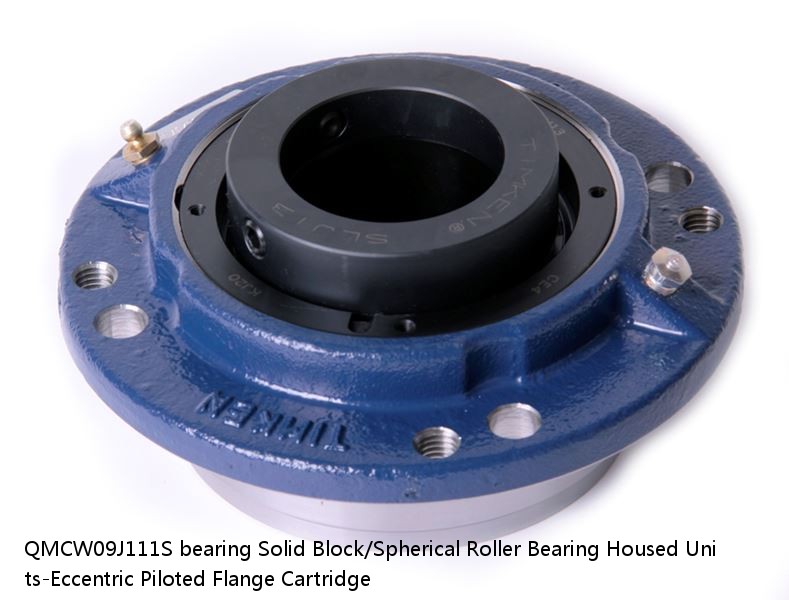

QMCW09J111S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Piloted Flange Cartridge
QMCW09J111S PDF download| Price： | enquiry |
| Model Number： | QMCW09J111S |
| Weight： | 3.93 |
| Bearing Number： | 2.64 |
| Housing Construction： | 9.0 lb4.10 Kg |
| UPC Code： | 0883450061629 0883450061636 0883450061650 0883450061667 0883450061674 0883450061681 0883450061698 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22209 |
| Shaft Size | 1-11/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMCW09J111SB QMCW09J111SC QMCW09J111SEB QMCW09J111SEC QMCW09J111SEM QMCW09J111SEN QMCW09J111SEO QMCW09J111SET QMCW09J111SM QMCW09J111SN QMCW09J111SO QMCW09J111ST |
| Locking Style | Eccentric |
| Weight | 9.0 lb4.10 Kg |
| Housing Construction | Piloted Flange Cartridge |
| UPC Code | 0883450061629 0883450061636 0883450061650 0883450061667 0883450061674 0883450061681 0883450061698 0883450061704 0883450166409 0883450167123 0883450258548 0883450259095 |
| Dimension BC | 5.13 in130.3 mm |
| Dimension C | 2.630 in66.80 mm |
| Dimension E | 3.62 in91.9 mm |
| Dimension B Fix | 1.53 in38.9 mm |
| Dimension B Exp | 1.58 in40.1 mm |
| Dimension F | 6.13 in155.7 mm |
| Dimension D | 4.38 in111.3 mm |
| Dimension H | 0.40 in10.2 mm |
| Dimension J (Bolt Size) | 0.438 in10 mm |
| Dimension M | 1.88 in47.8 mm |
| Dimension R | 0.16 in4.1 mm |
| Dimension S | 2.87 in72.9 mm |
| Dimension G | 4.250 in108.00 mm |
| Dimension K | 0.99 in25.1 mm |
| Dimension L Exp | 3.08 in78.2 mm |
| Dimension L Fix | 3.03 in77.0 mm |
| Dimension N | 1.50 in38.1 mm |
| C0 - Static Load | 24200 lb108 kN |
| C - Dynamic Load (Basic) | 24500 lb109 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.64 |
| Y2 - Geometry Factor | 3.93 |
| Oil Lubrication - M/N Seal | 2700 rpm |
| Oil Lubrication - T Seal | 4500 rpm |
| Oil Lubrication - B/C/O Seal | 1950 rpm |
| Grease Lubrication - M/N Seal | 2700 rpm |
| Grease Lubrication - T Seal | 4000 rpm |
| Grease Lubrication - B/C/O Seal | 1950 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0014 |
| Eng Internal Radial Clearance - Max | 0.0022 |
| Pre Install Clearance Min | 0.0014 in0.035 mm |
| Pre Install Clearance Max | 0.0022 in0.055 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| LM 203242 F | None | Stainless | LM 203242 F | Stainless | 20 | - |
| HA450249EMN1K##---+(20.5) | HA45EM | 20.5 | - | - | - | - |
| BAM 1820 | 28.575 | BAM 1820 | 52.0 | 28.575 | 34.925 | 25700 |
| K14X18X17H | K14X18X17H | 29000 | 14.000 | 18.000 | 2.65 | 17.10 |
| 23224EJW33C2 | 2.05 | 3.13 | 2.1 | 23224CJW33C2 | 2100 | 1800 |
| 190RU91R3 | NU | N | 1300 | 1100 | METRIC | 281.000 mm11.100 in |
| HM54T | 9.2 Kg | Tr270x4 | 12 mm | 24 mm | 310 mm | 340 mm |
| LM 254059N F UU AJ | Both side Seal (UU) | Stainless | LM 254059N F UU AJ | Plastic | 25 | - |
| 406203 | 406203 | 630.000 | 30.000 | 50.000 | 620.000 | 602.000 |
| 24130KEJW33 | 1.82 | 2.77 | 1.86 | 24130KCJW33 | 1300 | 1200 |
