Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Take-Up Block
- QATU15A215S

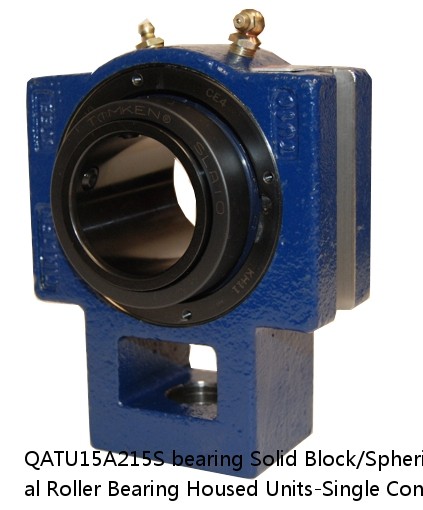

QATU15A215S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Take-Up Block
QATU15A215S PDF download| Price： | enquiry |
| Model Number： | QATU15A215S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 35 lb15.90 Kg |
| UPC Code： | 0883450050500 0883450050517 0883450050531 0883450050548 0883450050555 0883450050562 0883450050579 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 2-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QATU15A215SB QATU15A215SC QATU15A215SEB QATU15A215SEC QATU15A215SEM QATU15A215SEN QATU15A215SEO QATU15A215SET QATU15A215SM QATU15A215SN QATU15A215SO QATU15A215ST |
| Locking Style | Single Concentric |
| Weight | 35 lb15.90 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450050500 0883450050517 0883450050531 0883450050548 0883450050555 0883450050562 0883450050579 0883450050586 0883450195232 0883450195393 0883450272414 0883450272582 |
| Dimension A | 3.00 in76.2 mm |
| Dimension C | 1.00 in25.4 mm |
| Dimension D | 6.75 in171.5 mm |
| Dimension E | 5.94 in150.9 mm |
| Dimension F | 1.56 in39.6 mm |
| Dimension G | 1.56 in39.6 mm |
| Dimension J | 4.25 in108.0 mm |
| Dimension L | 8.65 in219.7 mm |
| Dimension KA | 1.25 in31.8 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension N | 3.82 in97.0 mm |
| Dimension P | 4.75 in120.7 mm |
| Dimension S | 1.810 in46.00 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb220 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.08 in2.03 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.050 mm0.0020 in |
| Pre Install Clearance Max | 0.080 mm0.0031 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| NJ2311E | 55 | 2.0 | 2.0 | 2.350 | 5600 | 4800 |
| 23228EXQ | 140 | 3.0 | 18.80 | 2600 | 2100 | 250 |
| E/TTU/TRB/2 3/4 | 2.26 | 1.87 | 0.7 | 0.87 | 29 lb | 053893778914 |
| QVVCW22V312S | 4.06 | 2.73 | 43 lb19.50 Kg | 0883450091442 0883450091572 0883450104265 0883450104555 0883450109963 0883450110167 0883450120296 08 | 0.0030 in0.076 mm | 3-3/4 in |
| 81826 | 81826 | 1011.240 | 1016.025 | 54.000 | - | - |
| NH300137BNN1KCZ1AL+(28.5) | NH30BN | 28.5 | - | - | - | - |
| 7312BDB FY | 60 | 2.1 | 7312BDB FY | 5000 | 3700 | 130 |
| SNP/3096 x 18 | -0.008 in | 1:12 | S-3096 | 230K | 2.541 in | P-96 |
| NA4932 | 2.00 | NA4932 | 5.6 | 2200 | 1500 | 220 |
| HBN10025K-7RRG1+317LC0 | HBN10025K-7 | 317.000 | Overall thread lenght is added to the both ends of the stroke 10mm. | There is the groove on both ends of the stroke. | - | - |
