Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
- QVVTU22V312S

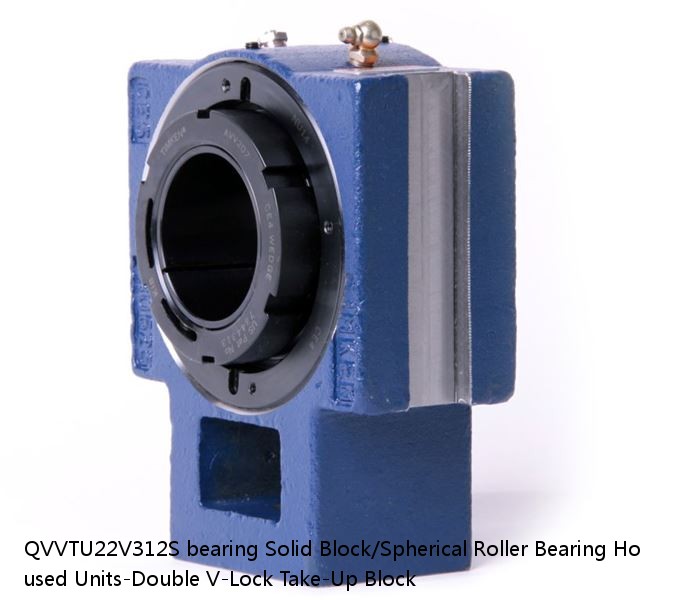

QVVTU22V312S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
QVVTU22V312S PDF download| Price： | enquiry |
| Model Number： | QVVTU22V312S |
| Weight： | 4.06 |
| Bearing Number： | 2.73 |
| Housing Construction： | 58.0 lb26.3 Kg |
| UPC Code： | 0883450378246 0883450378253 0883450378260 0883450378277 0883450378284 0883450378291 0883450378307 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22222 |
| Shaft Size | 3-3/4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVTU22V312SB QVVTU22V312SC QVVTU22V312SEB QVVTU22V312SEC QVVTU22V312SEM QVVTU22V312SEN QVVTU22V312SEO QVVTU22V312SET QVVTU22V312SM QVVTU22V312SN QVVTU22V312SO QVVTU22V312ST |
| Locking Style | Double V-Lock |
| Weight | 58.0 lb26.3 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450378246 0883450378253 0883450378260 0883450378277 0883450378284 0883450378291 0883450378307 0883450378314 0883450378321 0883450378338 0883450378345 0883450378352 |
| Dimension A | 4.13 in104.9 mm |
| Dimension C | 1.13 in28.7 mm |
| Dimension D | 9.44 in239.8 mm |
| Dimension E | 8.63 in219.2 mm |
| Dimension F | 2.13 in54.1 mm |
| Dimension G | 2.06 in52.3 mm |
| Dimension J | 5.63 in143.0 mm |
| Dimension L | 11.69 in296.9 mm |
| Dimension N | 4.38 in111.3 mm |
| Dimension P | 7.00 in177.8 mm |
| Dimension RVV | 0.74 in18.8 mm |
| Dimension S | 2.060 in52.30 mm |
| Dimension T | 4.99 in126.7 mm |
| Dimension TVV | 5.13 in130.3 mm |
| C - Dynamic Load (Basic) | 125000 lb555 kN |
| C0 - Static Load | 147000 lb653 kN |
| e - Geometry Factor | 0.25 |
| Y1 - Geometry Factor | 2.73 |
| Y2 - Geometry Factor | 4.06 |
| Oil Lubrication - M/N Seal | 900 rpm |
| Oil Lubrication - T Seal | 1700 rpm |
| Oil Lubrication - B/C/O Seal | 600 rpm |
| Grease Lubrication - M/N Seal | 900 rpm |
| Grease Lubrication - T Seal | 1200 rpm |
| Grease Lubrication - B/C/O Seal | 600 rpm |
| Float | 0.08 in2.11 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0053 |
| Eng Internal Radial Clearance - Max | 0.0067 |
| Pre Install Clearance Min | 0.135 mm0.0053 in |
| Pre Install Clearance Max | 0.170 mm0.0067 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| SNW/15 x 2 7/16 | -0.004 in | 1:12 | S-15 | 222K | 0.666 in | W-15 |
| FYR-3.15/16-3 | 700 | 310.931 | 320.278125 | 273.05 | 100.0125 | 122.2375 |
| 6005N | - | 25 | 0.6 | 0.6 | 6005N | 0.079 |
| 855R/854 | 57.150 | 88.900 | 3.2 | 7.9 | 2700 | 2100 |
| NUP330E | 150 | 4.0 | 4.0 | NUP330E | 28.400 | 2 300 |
| LM 406080 F UU OP | Both side Seal (UU) | Stainless | LM 406080 F UU OP | Stainless | 40 | - |
| 6024/ZZ | 2.03 Kg | 2.000 mm | 28.000 mm | 180.000 mm | 6100 rpm | 4200 rpm |
| 7900CDB | Standard | 10 | 0.3 | 0.15 | 0.3 | 7900CDB |
| HR32216J | 0.79 | Standard | 80 | 2.0 | 2.0 | 2.5 |
| UKT322+H2322X | B-PT1/8 | 100 / Heavy-duty(3) | 100 | Heavy-duty(3) | UKT322+H2322X | - |
