Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
- QVVTU14V060S

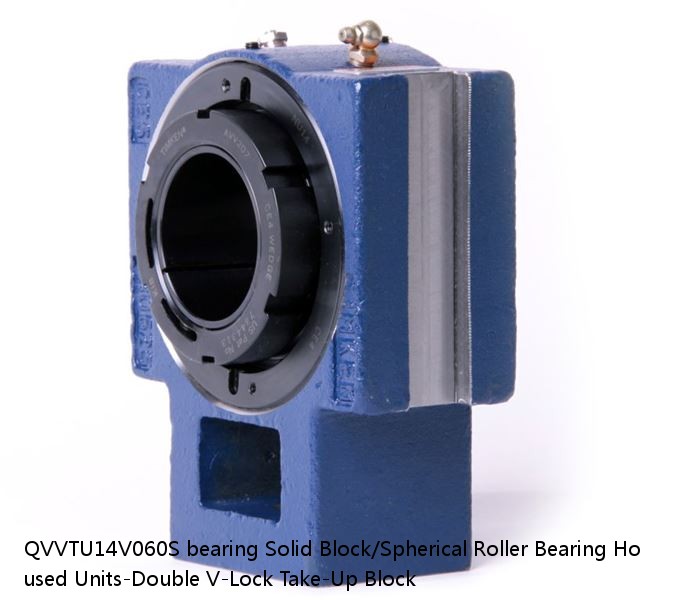

QVVTU14V060S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Take-Up Block
QVVTU14V060S PDF download| Price： | enquiry |
| Model Number： | QVVTU14V060S |
| Weight： | 4.32 |
| Bearing Number： | 2.90 |
| Housing Construction： | 17.0 lb7.7 Kg |
| UPC Code： | 0883450375962 0883450375979 0883450375986 0883450375993 0883450376006 0883450376013 0883450376020 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22214 |
| Shaft Size | 60 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVVTU14V060SB QVVTU14V060SC QVVTU14V060SEB QVVTU14V060SEC QVVTU14V060SEM QVVTU14V060SEN QVVTU14V060SEO QVVTU14V060SET QVVTU14V060SM QVVTU14V060SN QVVTU14V060SO QVVTU14V060ST |
| Locking Style | Double V-Lock |
| Weight | 17.0 lb7.7 Kg |
| Housing Construction | Take-Up |
| UPC Code | 0883450375962 0883450375979 0883450375986 0883450375993 0883450376006 0883450376013 0883450376020 0883450376037 0883450376044 0883450376051 0883450376068 0883450376075 |
| Dimension A | 2.75 in69.9 mm |
| Dimension C | 0.88 in22.4 mm |
| Dimension D | 5.88 in149.4 mm |
| Dimension E | 5.13 in130.3 mm |
| Dimension F | 1.31 in33.3 mm |
| Dimension G | 1.31 in33.3 mm |
| Dimension J | 3.75 in95.3 mm |
| Dimension L | 7.63 in193.8 mm |
| Dimension N | 3.48 in88.4 mm |
| Dimension P | 4.75 in120.7 mm |
| Dimension RVV | 0.61 in15.5 mm |
| Dimension S | 1.060 in26.90 mm |
| Dimension T | 3.99 in101.3 mm |
| Dimension TVV | 4.09 in103.9 mm |
| C - Dynamic Load (Basic) | 47800 lb213 kN |
| C0 - Static Load | 52000 lb231 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.32 |
| Oil Lubrication - M/N Seal | 1700 rpm |
| Oil Lubrication - T Seal | 3050 rpm |
| Oil Lubrication - B/C/O Seal | 1400 rpm |
| Grease Lubrication - M/N Seal | 1700 rpm |
| Grease Lubrication - T Seal | 2600 rpm |
| Grease Lubrication - B/C/O Seal | 1400 rpm |
| Float | 0.08 in2.11 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Pre Install Clearance Min | 0.075 mm0.0030 in |
| Pre Install Clearance Max | 0.094 mm0.0037 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| K 89328 M | 1300 | 670 | 3100.000 | 640.000 | 0.000 | 19.000 |
| ZKTX06-16 | ZKTX06-16 | B-1/4-28UNF | Medium-duty(X) | - | 1.00000000 | - |
| MCM05006H10D00 | MCM05006H10D00 | - | - | 60 | 10 | - |
| NU1052AMAWEW37R | NU | N | 1700 | 1400 | METRIC | 400 mm15.748 in |
| 7020BDT FY | 100 | 1.0 | 1.5 | 3800 | 2800 | 7020BDTFY |
| GEH 40 ES-2RS | 640.000 | 127.000 | 17.000 | 40.000 | 68.0000 | 500 |
| UCTH201J-150 | Normal-duty (2) | UCTH201J-150 | - | - | 12 | - |
| FCRSE-35 | 0.0 | 0.0 | 4000 | 22 | 16 | 17000 |
| 68242RU | 120 | 1.0 | 4000 | 68242RU | 150 | 1.45 |
| FWF-374418 | FWF-374418 | 32.0 | 37.00 | 44.00 | 2700 | 26500 |
