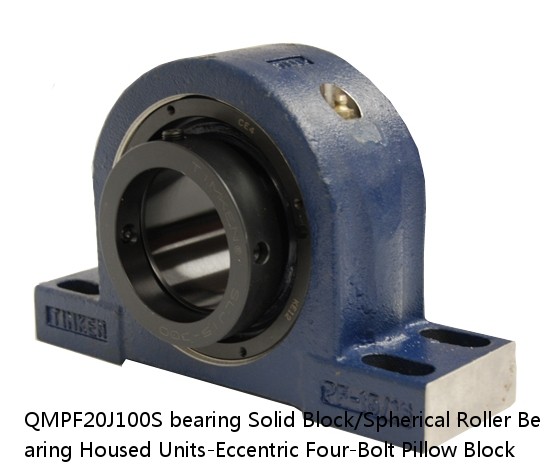

QMPF20J100S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Four-Bolt Pillow Block
QMPF20J100S PDF download| Price： | enquiry |
| Model Number： | QMPF20J100S |
| Weight： | 4.24 |
| Bearing Number： | 2.85 |
| Housing Construction： | 67 lb30.400 Kg |
| UPC Code： | 0883450084727 0883450084734 0883450084758 0883450084765 0883450084772 0883450084789 0883450084796 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 100 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QMPF20J100SB QMPF20J100SC QMPF20J100SEB QMPF20J100SEC QMPF20J100SEM QMPF20J100SEN QMPF20J100SEO QMPF20J100SET QMPF20J100SM QMPF20J100SN QMPF20J100SO QMPF20J100ST |
| Locking Style | Eccentric |
| Weight | 67 lb30.400 Kg |
| Housing Construction | Four-Bolt Pillow Block |
| UPC Code | 0883450084727 0883450084734 0883450084758 0883450084765 0883450084772 0883450084789 0883450084796 0883450084802 0883450155861 0883450156592 0883450250801 0883450251228 |
| Dimension A | 4.25 in108.0 mm |
| Dimension B | 8.780 in223 mm |
| Dimension C | 6.00 in152.4 mm |
| Dimension D Max | 13.38 in339.9 mm |
| Dimension D Min | 10.88 in276.4 mm |
| Dimension E | 2.25 in57.2 mm |
| Dimension F | 14.88 in378.0 mm |
| Dimension G | 4.310 in109.50 mm |
| Dimension H | 1.40 in35.6 mm |
| Dimension J (Bolt Size) | 0.750 in20 mm |
| Dimension K | 1.63 in41.4 mm |
| Dimension L | 5.13 in130.3 mm |
| Dimension M | 2.96 in75.2 mm |
| Dimension R | 0.36 in9.1 mm |
| Dimension S | 4.590 in116.60 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
