Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- TAFB26K408S

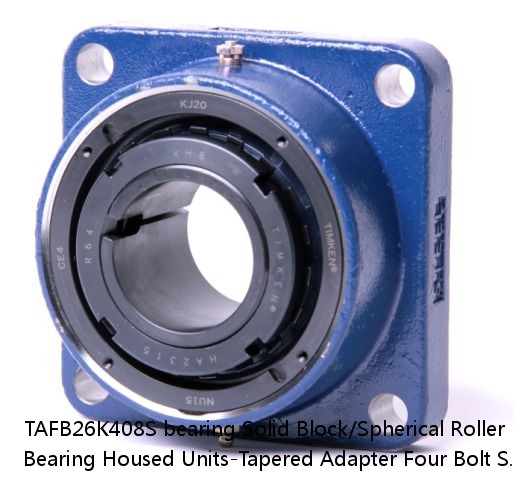

TAFB26K408S bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
TAFB26K408S PDF download| Price： | enquiry |
| Model Number： | TAFB26K408S |
| Weight： | 3.61 |
| Bearing Number： | 2.43 |
| Housing Construction： | 94 lb42.6 Kg |
| UPC Code： | 0.0040 in0.102 mm |
| Shaft Size Type： | 4-1/2 in |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22226 |
| Shaft Size | 4-1/2 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | TAFB26K408SB TAFB26K408SC TAFB26K408SEB TAFB26K408SEC TAFB26K408SEM TAFB26K408SEN TAFB26K408SEO TAFB26K408SET TAFB26K408SM TAFB26K408SN TAFB26K408SO TAFB26K408ST |
| Locking Style | Tapered Adapter |
| Weight | 94 lb42.6 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450120272 0883450120289 0883450120302 0883450120319 0883450120326 0883450120333 0883450120340 0883450120357 0883450199438 0883450199636 0883450277075 0883450277273 |
| Dimension BC | 13.97 in354.8 mm |
| Dimension A | 16.2 in411.5 mm |
| Dimension C | 6.50 in165.1 mm |
| Dimension D | 11.420 in290.10 mm |
| Dimension E | 9.88 in251.0 mm |
| Dimension F | 11.75 in298.5 mm |
| Dimension H | 1.26 in32.0 mm |
| Dimension J (Bolt Size) | 0.875 in24 mm |
| Dimension G | 1.65 in41.91 mm |
| Dimension L | 5.14 in130.6 mm |
| Dimension M | 2.83 in71.9 mm |
| Dimension N | 4.500 in114.3 mm |
| Dimension S | 4.760 in120.90 mm |
| C0 - Static Load | 212000 lb945 kN |
| C - Dynamic Load (Basic) | 170000 lb757 kN |
| e - Geometry Factor | 0.28 |
| Y1 - Geometry Factor | 2.43 |
| Y2 - Geometry Factor | 3.61 |
| Oil Lubrication - M/N Seal | 700 rpm |
| Oil Lubrication - T Seal | 1500 rpm |
| Oil Lubrication - B/C/O Seal | 400 rpm |
| Grease Lubrication - M/N Seal | 700 rpm |
| Grease Lubrication - T Seal | 1000 rpm |
| Grease Lubrication - B/C/O Seal | 400 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0040 in0.102 mm |
| Pre Install Clearance Min | 0.0063 in0.160 mm |
| Pre Install Clearance Max | 0.0079 in0.201 mm |
| Int Radial Clearance Reduction Min | 0.0025 in0.064 mm |
| Int Radial Clearance Reduction Max | 0.0035 in0.089 mm |
| Adapter Sleeve Axial Movement Min | 0.035 in0.9 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| TRF-3244 | 0.066 / 0.145 | 2.00000000 | 50.80 / 2.000 | 50.72 / 1.997 | 50.80 / 2.000 | 4.70 / 0.185 |
| 1LT10XUU+100L-01 | LT10X | - | - | - | - | - |
| FNL 505 B + 1205 K + H 205 | FNL 505 B + 1205 K + H 20... | 110.000 | FNL 505 B | 38.000 | 100.000 | 20.000 |
| 23040KEJW33C4 | 2.89 | 4.4 | 2.95 | 23040KCJW33C4 | 1800 | 1500 |
| HAR006CDT | 30 | 0.0 | 0.0 | 32000 | 21000 | HAR006CDT |
| ZKFL208-22 | A-1/4-28UNF | ZKFL208-22 | Normal-duty(2) | - | 1 3/8 | - |
| L217845D/L217813 | 1.6250 in41.275 mm | L217800 | 0.030 in0.80 mm | Spacer shows standard nominal .01 radii, actual bearing may vary | Imperial | 5 in127 mm |
| 230/950YMDW896W40C0 | 3.34 | 5.09 | 3.42 | 240 | 210 | 6.000 mm0.240 in |
| FYCR-5 | 5 | FYCR-5 | 0.016 | 340 | 3350 | 10 |
| UP005J | 25 | Light-duty(0) | UP005J | Standard | - | - |
