Single V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block
- QVFXP28V500S

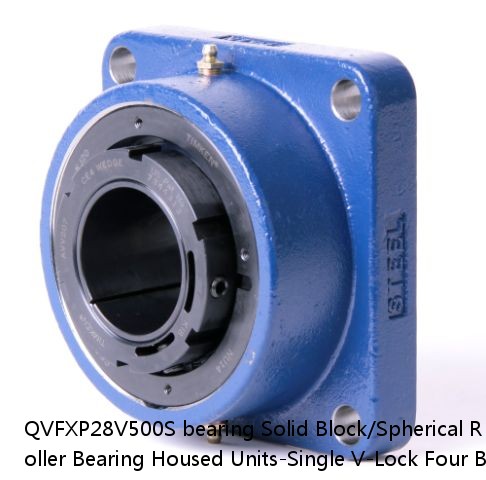

QVFXP28V500S Bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block
QVFXP28V500S PDF download| QVFXP28V500S interchange timken QVFXP28V500S | |
| QVFXP28V500S cross reference timken QVFXP28V500S | |
| QVFXP28V500S Equivalent bearing interchange guide： | |
| Price： | enquiry |
| Model Number： | QVFXP28V500S |
| d: | 3.89 |
| D: | 2.62 |
| B: | 115 lb52.2 Kg |
| r(min): | 0883450338905 0883450338912 0883450338929 0883450338936 0883450338943 0883450338950 0883450338967 08 |
| r1(min): | 0.0050 in0.127 mm |
| Width: | 5 in |
| Size: | Imperial |
| Weight： | 0.0063 in0.160 mm |
| Bearing Number： | 0.0079 in0.201 mm |
| Housing Construction： | 1200 rpm |
| UPC Code： | 650 rpm |
| Shaft Size Type： | 350 rpm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22228 |
| Shaft Size | 5 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | 99999B 99999C 99999EB 99999EC 99999EM 99999EN 99999EO 99999ET 99999M 99999N 99999O 99999T |
| Locking Style | Single V-Lock |
| Weight | 115 lb52.2 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450338905 0883450338912 0883450338929 0883450338936 0883450338943 0883450338950 0883450338967 0883450338974 0883450338981 0883450338998 0883450339001 0883450339018 |
| Dimension BC | 14 in355.6 mm |
| Dimension C | 7.47 in189.7 mm |
| Dimension D | 11.190 in284.20 mm |
| Dimension E | 7.000 in177.8 mm |
| Dimension F | 16.5 in419.1 mm |
| Dimension H | 1.50 in38.1 mm |
| Dimension J (Bolt Size) | 1.125 in24 mm |
| Dimension G | 11.188 in284.18 mm |
| Dimension L Exp | 6.62 in168.1 mm |
| Dimension L Fix | 6.54 in166.1 mm |
| Dimension N | 5.450 in138.40 mm |
| Dimension RV | 0.72 in18.3 mm |
| Dimension SV | 5.82 in147.8 mm |
| C0 - Static Load | 237000 lb1060 kN |
| C - Dynamic Load (Basic) | 194000 lb863 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.62 |
| Y2 - Geometry Factor | 3.89 |
| Oil Lubrication - M/N Seal | 650 rpm |
| Oil Lubrication - T Seal | 1200 rpm |
| Oil Lubrication - B/C/O Seal | 350 rpm |
| Grease Lubrication - M/N Seal | 650 rpm |
| Grease Lubrication - T Seal | 900 rpm |
| Grease Lubrication - B/C/O Seal | 350 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0050 in0.127 mm |
| Eng Internal Radial Clearance - Min | 0.0063 |
| Eng Internal Radial Clearance - Max | 0.0079 |
| Pre Install Clearance Min | 0.0063 in0.160 mm |
| Pre Install Clearance Max | 0.0079 in0.201 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 23072KEJW507C08C3 | 2.88 | 4.38 | 2.94 | 23072KCJW507C08C3 | 900 | 770 |
| 23068EJW507C08 | 2.89 | 4.4 | 2.96 | 23068CJW507C08 | 930 | 800 |
| 7918DT | 90 | 0.60 | 1.1 | 7918 | 0.660 | 7 000 |
| LH300111FLN1KCZ---+(15.5) | LH30FL | 15.5 | - | - | - | - |
| 3MMV9312HX | 1 mm0.039 in | 1 mm0.039 in | 34600 rpm | 17300 rpm | 8.73130 mm11/32 in | METRIC |
| 7330CDF FY | 150 | 1.5 | 4.0 | 3400 | 2600 | 7330CDFFY |
| E/P2B/TRB/1 1/4/ECO/ECC | 2.14 | 1.77 | 0.7 | 0.87 | 4.0 lb | 0883450505499 - Assembly is not orderable, contact Customer Service. |
| HMV/72 | Tr360x5 | 15 mm | 31300 mm² | 362 mm | 431 mm | 56.00 mm |
| F685 | 5.0 | 0.15 | F685 | 53000 | 12.5 | 11 |
| SV238 | 22238B | M27 | 33 | 54 | 680 | 580 |
