Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
- DVF15K065S

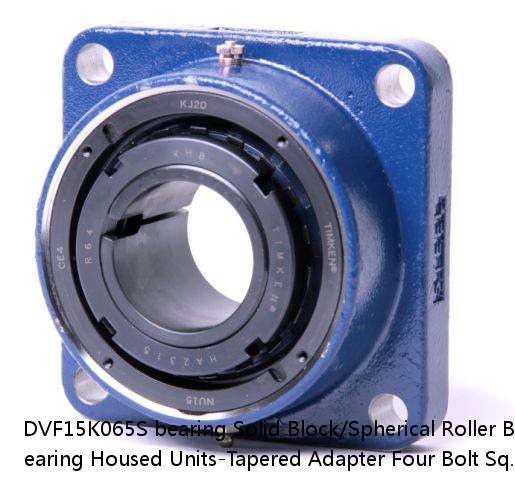

DVF15K065S bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Four Bolt Square Flange Block
DVF15K065S PDF download| Price： | enquiry |
| Model Number： | DVF15K065S |
| Weight： | 4.08 |
| Bearing Number： | 2.74 |
| Housing Construction： | 18.000 lb8.2 Kg |
| UPC Code： | 0.0035 in0.089 mm |
| Shaft Size Type： | 65 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 65 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | DVF15K065SB DVF15K065SC DVF15K065SEB DVF15K065SEC DVF15K065SEM DVF15K065SEN DVF15K065SEO DVF15K065SET DVF15K065SM DVF15K065SN DVF15K065SO DVF15K065ST |
| Locking Style | Tapered Adapter |
| Weight | 18.000 lb8.2 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450006125 0883450006132 0883450006156 0883450006163 0883450006170 0883450006187 0883450006194 0883450006200 0883450196512 0883450196710 0883450274029 0883450274227 |
| Dimension BC | 7.6 in193.0 mm |
| Dimension C | 3.86 in98 mm |
| Dimension D | 5.750 in146.10 mm |
| Dimension E | 5.38 in136.7 mm |
| Dimension F | 6.63 in168.4 mm |
| Dimension H | 1.00 in25.4 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension L | 3.20 in81.4 mm |
| Dimension M | 1.73 in43.9 mm |
| Dimension N | 2.850 in72.40 mm |
| Dimension S | 2.87 in72.9 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.25 |
| Y1 - Geometry Factor | 2.74 |
| Y2 - Geometry Factor | 4.08 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0035 in0.089 mm |
| Pre Install Clearance Min | 0.0037 in0.095 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| Int Radial Clearance Reduction Min | 0.0015 in0.038 mm |
| Int Radial Clearance Reduction Max | 0.0020 in0.051 mm |
| Adapter Sleeve Axial Movement Min | 0.022 in0.6 mm |
| Adapter Sleeve Axial Movement Max | 0.03 in0.8 mm |
| Post Install Int Radial Clearance Min | 0.0017 in0.043 mm |
