Single V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block
- QVFC20V304S

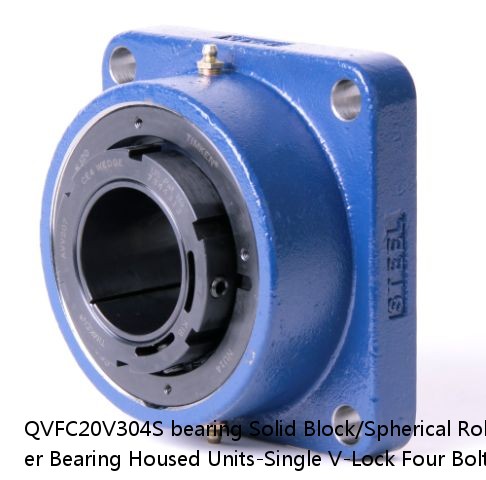

QVFC20V304S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block
QVFC20V304S PDF download| Price： | enquiry |
| Model Number： | QVFC20V304S |
| Weight： | 4.23 |
| Bearing Number： | 2.84 |
| Housing Construction： | 40.0 lb18.1 Kg |
| UPC Code： | 0883450150262 0883450150354 0883450157810 0883450158022 0883450179409 0883450179560 0883450187657 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 3-1/4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVFC20V304SB QVFC20V304SC QVFC20V304SEB QVFC20V304SEC QVFC20V304SEM QVFC20V304SEN QVFC20V304SEO QVFC20V304SET QVFC20V304SM QVFC20V304SN QVFC20V304SO QVFC20V304ST |
| Locking Style | Single V-Lock |
| Weight | 40.0 lb18.1 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450150262 0883450150354 0883450157810 0883450158022 0883450179409 0883450179560 0883450187657 0883450187749 0883450280204 0883450280297 0883450284400 0883450284493 |
| Dimension BC | 11.02 in279.9 mm |
| Dimension A | 13 in330.2 mm |
| Dimension C | 4.9 in124.5 mm |
| Dimension D | 9.060 in230.10 mm |
| Dimension E | 7.79 in197.9 mm |
| Dimension F | 9.76 in247.9 mm |
| Dimension H | 1.13 in28.7 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension G | 1.25 in31.75 mm |
| Dimension L | 4.14 in105.2 mm |
| Dimension N | 3.710 in94.20 mm |
| Dimension RV | 0.38 in9.7 mm |
| Dimension SV | 3.75 in95.3 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.84 |
| Y2 - Geometry Factor | 4.23 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.0043 in0.110 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| UCFL201JE | A-1/4-28UNF | UCFL201JE | Normal-duty(2) | 12 | - | - |
| NU2212ET7 | Standard | 60 | 1.5 | 1.5 | 1.5 | 1.5 |
| K-V7S23 | 100V (Half wave) | - | - | - | - | - |
| FIR-14015535-1 | 140 | FIR-14015535-1 | 0.949 | 155 | - | 35 |
| LME 406280N U OP | One side Seal (U) | Steel | LME 406280N U OP | Plastic | 40 | - |
| 29318R | 39 | 90 | 1.0 | 29318R | 2500 | 148 |
| 239/850EW33 | 850 | 6.0 | 546.00 | 390 | 280 | 1120 |
| SE 507-606 + 1306 K + HA 306 | SE 507-606 | 50 | 94 | SE 507-606 + 1306 K + HA 306 | 83 | 1306 K |
| TAS 25 | 3.549 lb1.61 Kg | 1.469 in37.3 mm | 139.70 mm5.500 in | 73 mm2.874 in | 1750 lbf7800 N | 0.984 in25 mm |
| 6321/2RS/C3 | 8.110 Kg | 3.000 mm | 49.000 mm | 225.000 mm | 6000 rpm | 4200 rpm |
