Single V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block
- QVFB20V090S

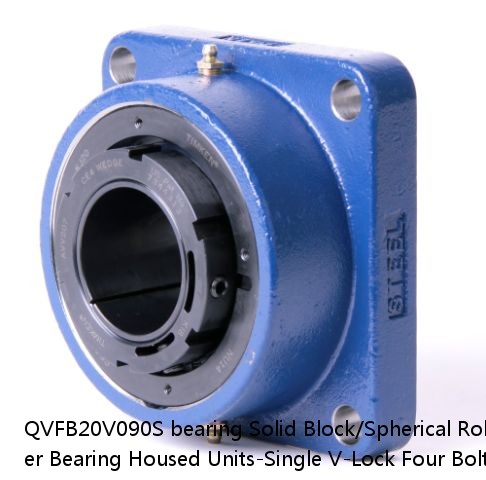

QVFB20V090S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Four Bolt Square Flange Block
QVFB20V090S PDF download| Price： | enquiry |
| Model Number： | QVFB20V090S |
| Weight： | 4.23 |
| Bearing Number： | 2.84 |
| Housing Construction： | 40.0 lb18.1 Kg |
| UPC Code： | 0883450043427 0883450207393 0883450207546 0883450219822 0883450219976 0883450232241 0883450232395 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 90 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVFB20V090SB QVFB20V090SC QVFB20V090SEB QVFB20V090SEC QVFB20V090SEM QVFB20V090SEN QVFB20V090SEO QVFB20V090SET QVFB20V090SM QVFB20V090SN QVFB20V090SO QVFB20V090ST |
| Locking Style | Single V-Lock |
| Weight | 40.0 lb18.1 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450043427 0883450207393 0883450207546 0883450219822 0883450219976 0883450232241 0883450232395 0883450240987 0883450241137 0883450245944 0883450246095 0883450295901 |
| Dimension BC | 11.02 in279.9 mm |
| Dimension A | 13 in330.2 mm |
| Dimension C | 4.9 in124.5 mm |
| Dimension D | 9.060 in230.10 mm |
| Dimension E | 7.79 in197.9 mm |
| Dimension F | 9.76 in247.9 mm |
| Dimension H | 1.13 in28.7 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension G | 1.25 in31.75 mm |
| Dimension L | 4.2 in106.7 mm |
| Dimension N | 3.710 in94.20 mm |
| Dimension RV | 0.45 in11.4 mm |
| Dimension SV | 3.75 in95.3 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.84 |
| Y2 - Geometry Factor | 4.23 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.0043 in0.110 mm |
| Pre Install Clearance Max | 0.0055 in0.140 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| HE2334 | 9.2 Kg | MB34 | KM34 | 154.00 mm | M170x3 | 220 mm |
| BNK1408-2.5RRG2+421LC7Y | BNK1408-2.5 | BNK1408-2.5RRG2+421LC7Y | 421 | G2 | C7 | - |
| 6224/RS/C3 | 5.16 Kg | 2.100 mm | 40.000 mm | 215.000 mm | 5700 rpm | 4000 rpm |
| QJ307 | 35 | 1.5 | QJ307 | 0.57 | 9 300 | 7 000 |
| FWF-323728W | FWF-323728W | 31.0 | 32.00 | 37.00 | 2570 | 25200 |
| N 750/P 750 | 3 | 50.8 mm2 in | 738.68 mm29.082 in | 584.2 mm23.000 in | 750.21 mm29.536 in | P 750 |
| 400x460x28 HDSA2 RD | 400.0000 | 460.000 | 400x460x28 HDSA2 RD | RD | HDSA2 | 28.000 |
| LH550201GLN1PCZ---+(40.5) | LH55GL | 40.5 | - | - | - | - |
| WBK40DFD-31H | WBK40DFD-31H | - | - | - | - | - |
| 7908CDT FY | 40 | 0.3 | 0.6 | 18000 | 13000 | 7908CDTFY |
