Single V-Lock Solid-Block Housed Units

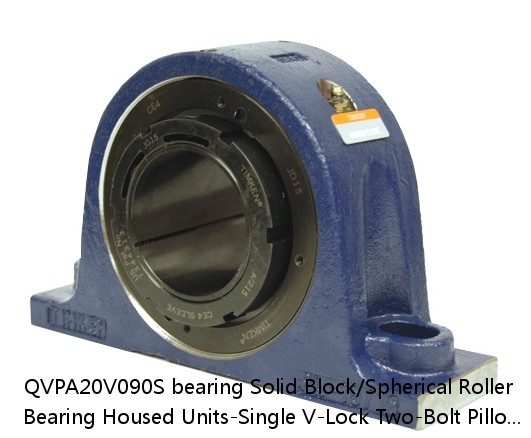

QVPA20V090S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Two-Bolt Pillow Block

Buy Now
Contact Now

Price：	enquiry
Model Number：	QVPA20V090S
Weight：	4.24
Bearing Number：	2.85
Housing Construction：	65 lb29.50 Kg
UPC Code：	0883450048392 0883450048422 0883450206112 0883450206266 0883450218542 0883450218696 0883450230964 08
Shaft Size Type：	0.0030 in0.076 mm

Engineering Group	Mounted Bearing
Bearing Number	22220
Shaft Size	90 mm
Shaft Size Type	Metric
Full Timken Part Number	QVPA20V090SB QVPA20V090SC QVPA20V090SEB QVPA20V090SEC QVPA20V090SEM QVPA20V090SEN QVPA20V090SEO QVPA20V090SET QVPA20V090SM QVPA20V090SN QVPA20V090SO QVPA20V090ST
Locking Style	Single V-Lock
Weight	65 lb29.50 Kg
Housing Construction	Two-Bolt Pillow Block
UPC Code	0883450048392 0883450048422 0883450206112 0883450206266 0883450218542 0883450218696 0883450230964 0883450231114 0883450239707 0883450239851 0883450244664 0883450244817
Dimension A	4.50 in114.3 mm
Dimension B	8.63 in219.2 mm
Dimension C	4.9 in124.5 mm
Dimension D Max	12.88 in327.2 mm
Dimension D Min	10.88 in276.4 mm
Dimension F	14.50 in368.3 mm
Dimension G	3.420 in86.90 mm
Dimension H	1.63 in41.4 mm
Dimension J (Bolt Size)	0.875 in24 mm
Dimension L	4.03 in102.4 mm
Dimension RV	0.19 in4.8 mm
Dimension SV	3.75 in95.3 mm
C0 - Static Load	113000 lb502 kN
C - Dynamic Load (Basic)	97700 lb435 kN
e - Geometry Factor	0.24
Y1 - Geometry Factor	2.85
Y2 - Geometry Factor	4.24
Oil Lubrication - M/N Seal	1200 rpm
Oil Lubrication - T Seal	2000 rpm
Oil Lubrication - B/C/O Seal	900 rpm
Grease Lubrication - M/N Seal	1200 rpm
Grease Lubrication - T Seal	1600 rpm
Grease Lubrication - B/C/O Seal	900 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0030 in0.076 mm
Eng Internal Radial Clearance - Min	0.0043
Eng Internal Radial Clearance - Max	0.0055
Pre Install Clearance Min	0.0043 in0.110 mm
Pre Install Clearance Max	0.0055 in0.140 mm
