Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four Bolt Square Flange Block
- QVVFL16V300S

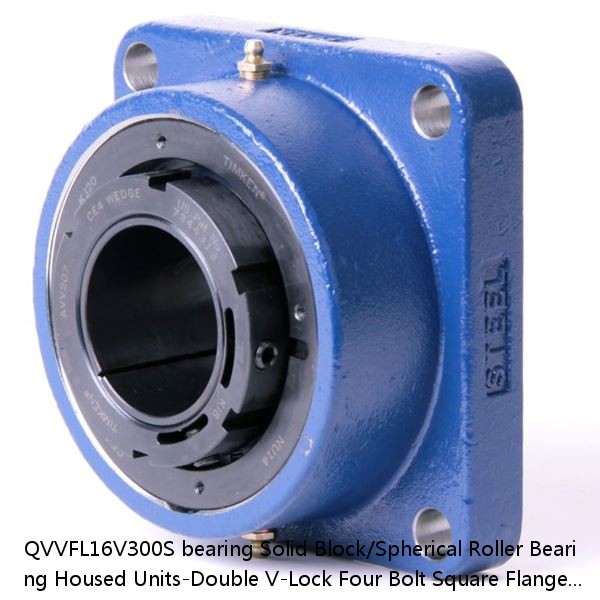

QVVFL16V300S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four Bolt Square Flange Block
QVVFL16V300S PDF download| Price： | enquiry |
| Model Number： | QVVFL16V300S |
| Weight： | 4.48 |
| Bearing Number： | 3.01 |
| Housing Construction： | 23 lb10.40 Kg |
| UPC Code： | 0883450067812 0883450067843 0883450067911 0883450180498 0883450180689 0883450180870 0883450211703 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22216 |
| Shaft Size | 3 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVFL16V300SB QVVFL16V300SC QVVFL16V300SEB QVVFL16V300SEC QVVFL16V300SEM QVVFL16V300SEN QVVFL16V300SEO QVVFL16V300SET QVVFL16V300SM QVVFL16V300SN QVVFL16V300SO QVVFL16V300ST |
| Locking Style | Double V-Lock |
| Weight | 23 lb10.40 Kg |
| Housing Construction | Four-Bolt Square Flange |
| UPC Code | 0883450067812 0883450067843 0883450067911 0883450180498 0883450180689 0883450180870 0883450211703 0883450212083 0883450224123 0883450224505 0883450236546 0883450236928 |
| Dimension BC | 7.88 in200.2 mm |
| Dimension C | 4.19 in106.4 mm |
| Dimension D | 6.630 in168.40 mm |
| Dimension E | 5.56 in141.2 mm |
| Dimension F | 7.19 in182.6 mm |
| Dimension H | 1.06 in26.9 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension L Exp | 3.50 in88.9 mm |
| Dimension L Fix | 3.42 in86.9 mm |
| Dimension N | 2.930 in74.40 mm |
| Dimension RVV | 0.67 in17.0 mm |
| Dimension SVV | 4.08 in103.6 mm |
| C - Dynamic Load (Basic) | 57200 lb254 kN |
| C0 - Static Load | 62500 lb278 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.01 |
| Y2 - Geometry Factor | 4.48 |
| Oil Lubrication - M/N Seal | 1500 rpm |
| Oil Lubrication - T Seal | 2650 rpm |
| Oil Lubrication - B/C/O Seal | 1200 rpm |
| Grease Lubrication - M/N Seal | 1500 rpm |
| Grease Lubrication - T Seal | 2200 rpm |
| Grease Lubrication - B/C/O Seal | 1150 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0037 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0037 in0.095 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| BLP201J | 12 / Normal-duty(2) | 12 | Normal-duty(2) | Standard | - | - |
| 46T30234JR/97 | 125 | 170 | 4.0 | 46T30234JR/97 | 310 | 103 |
| BNF3616-2.5RRG1+112LC0 | 112.000 | BNF3616-2.5 | Overall thread lenght is added to the both ends of the stroke 10mm. | There is the groove on both ends of the stroke. | - | - |
| 22252E | 260 | 5.0 | 107.00 | 1200 | 1000 | 480 |
| 7926DB | 130 | 1.00 | 1.5 | 7926 | 1.820 | 4 700 |
| 6226M/C3 | 7.540 Kg | 3.000 mm | 40.000 mm | 230.000 mm | 5200 rpm | 3700 rpm |
| QAACW26A415S | 3.90 | 2.62 | 102 lb46.300 Kg | 0883450018302 0883450018319 0883450018333 0883450018340 0883450018357 0883450018364 0883450018371 08 | 0.0050 in0.127 mm | 4-15/16 in |
| ACH550-PDR-03A3-4-1 | 1 | PX1-1 | 3.3 | R1 | - | - |
| 62282RU | 140 | 3.0 | 62282RU | 2400 | 250 | 8.65 |
| LT170HS-650/1 | without Cover | - | - | - | - | - |
