Double V-Lock Solid-Block Housed Units

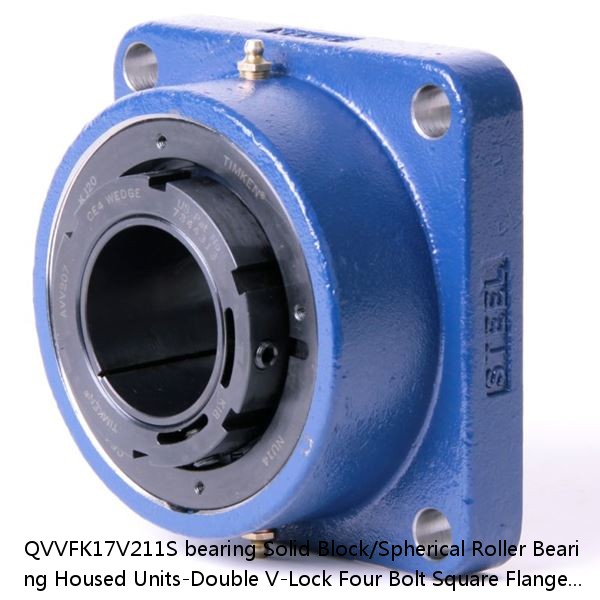

QVVFK17V211S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Four Bolt Square Flange Block

Buy Now
Contact Now

Price：	enquiry
Model Number：	QVVFK17V211S
Weight：	4.31
Bearing Number：	2.90
Housing Construction：	23 lb10.40 Kg
UPC Code：	0883450362702 0883450362719 0883450362726 0883450362733 0883450362740 0883450362757 0883450362764 08
Shaft Size Type：	0.0020 in0.051 mm

Engineering Group	Mounted Bearing
Bearing Number	22217
Shaft Size	2-11/16 in
Shaft Size Type	Imperial
Full Timken Part Number	QVVFK17V211SB QVVFK17V211SC QVVFK17V211SEB QVVFK17V211SEC QVVFK17V211SEM QVVFK17V211SEN QVVFK17V211SEO QVVFK17V211SET QVVFK17V211SM QVVFK17V211SN QVVFK17V211SO QVVFK17V211ST
Locking Style	Double V-Lock
Weight	23 lb10.40 Kg
Housing Construction	Four-Bolt Square Flange
UPC Code	0883450362702 0883450362719 0883450362726 0883450362733 0883450362740 0883450362757 0883450362764 0883450362771 0883450362788 0883450362795 0883450362801 0883450362818
Dimension BC	9.5 in241.3 mm
Dimension C	4.19 in106.4 mm
Dimension D	7.630 in193.80 mm
Dimension E	6.72 in170.7 mm
Dimension F	8.38 in212.9 mm
Dimension H	1.31 in33.3 mm
Dimension J (Bolt Size)	0.75 in20 mm
Dimension L Exp	3.98 in101.1 mm
Dimension L Fix	3.64 in92.5 mm
Dimension N	3.310 in84.1 mm
Dimension RVV	0.28 in7.1 mm
Dimension SVV	4.18 in106.2 mm
C - Dynamic Load (Basic)	66900 lb297 kN
C0 - Static Load	71900 lb320 kN
e - Geometry Factor	0.23
Y1 - Geometry Factor	2.90
Y2 - Geometry Factor	4.31
Oil Lubrication - M/N Seal	1400 rpm
Oil Lubrication - T Seal	2400 rpm
Oil Lubrication - B/C/O Seal	1100 rpm
Grease Lubrication - M/N Seal	1400 rpm
Grease Lubrication - T Seal	2000 rpm
Grease Lubrication - B/C/O Seal	1100 rpm
Float	0.083 in2.108 mm
Shaft Tolerance	0.0020 in0.051 mm
Eng Internal Radial Clearance - Min	0.0037
Eng Internal Radial Clearance - Max	0.0047
Pre Install Clearance Min	0.0037 in0.095 mm
Pre Install Clearance Max	0.0047 in0.120 mm
