Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Two-Bolt Pillow Block
- QVVP22V100S

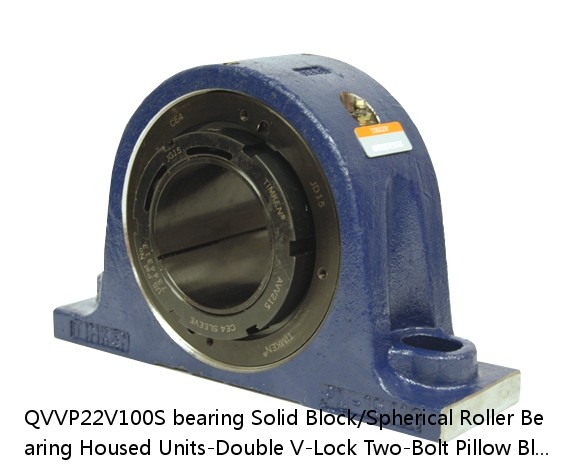

QVVP22V100S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Two-Bolt Pillow Block
QVVP22V100S PDF download| Price： | enquiry |
| Model Number： | QVVP22V100S |
| Weight： | 4.06 |
| Bearing Number： | 2.73 |
| Housing Construction： | 59.0 lb26.8 Kg |
| UPC Code： | 0883450170901 0883450171090 0883450171274 0883450171656 0883450171847 0883450172035 0883450202428 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22222 |
| Shaft Size | 100 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVVP22V100SB QVVP22V100SC QVVP22V100SEB QVVP22V100SEC QVVP22V100SEM QVVP22V100SEN QVVP22V100SEO QVVP22V100SET QVVP22V100SM QVVP22V100SN QVVP22V100SO QVVP22V100ST |
| Locking Style | Double V-Lock |
| Weight | 59.0 lb26.8 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450170901 0883450171090 0883450171274 0883450171656 0883450171847 0883450172035 0883450202428 0883450202800 0883450214841 0883450215220 0883450227261 0883450227643 |
| Dimension A | 4.13 in104.9 mm |
| Dimension B | 8.65 in219.7 mm |
| Dimension C | 5.5 in139.7 mm |
| Dimension D Max | 12.60 in320.0 mm |
| Dimension D Min | 10.04 in255.0 mm |
| Dimension F | 14.25 in362.0 mm |
| Dimension G | 4.040 in102.60 mm |
| Dimension H | 2.00 in50.8 mm |
| Dimension J (Bolt Size) | 1.000 in24 mm |
| Dimension L | 4.59 in116.6 mm |
| Dimension RVV | 0.55 in14.0 mm |
| Dimension SVV | 5.13 in130.3 mm |
| C - Dynamic Load (Basic) | 125000 lb555 kN |
| C0 - Static Load | 147000 lb653 kN |
| e - Geometry Factor | 0.25 |
| Y1 - Geometry Factor | 2.73 |
| Y2 - Geometry Factor | 4.06 |
| Oil Lubrication - M/N Seal | 900 rpm |
| Oil Lubrication - T Seal | 1700 rpm |
| Oil Lubrication - B/C/O Seal | 600 rpm |
| Grease Lubrication - M/N Seal | 900 rpm |
| Grease Lubrication - T Seal | 1200 rpm |
| Grease Lubrication - B/C/O Seal | 600 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0053 |
| Eng Internal Radial Clearance - Max | 0.0067 |
| Pre Install Clearance Min | 0.0053 in0.135 mm |
| Pre Install Clearance Max | 0.0067 in0.170 mm |
