Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Cartridge Block
- TAMC26K408S

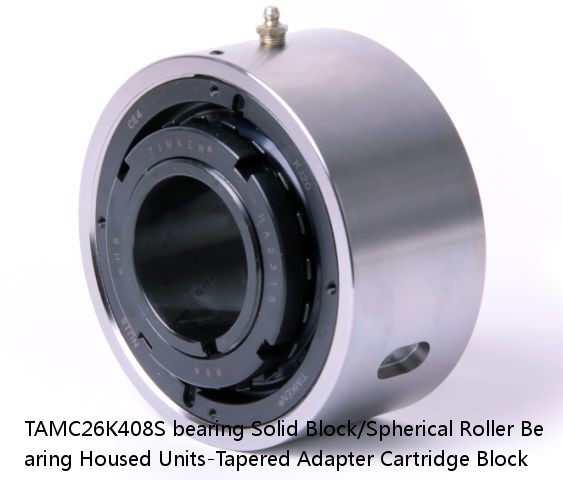

TAMC26K408S bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Cartridge Block
TAMC26K408S PDF download| Price： | enquiry |
| Model Number： | TAMC26K408S |
| Weight： | 3.90 |
| Bearing Number： | 2.62 |
| Housing Construction： | 52 lb23.60 Kg |
| UPC Code： | 0883450124270 0883450124287 0883450124300 0883450124317 0883450124324 0883450124331 0883450124348 08 |
| Shaft Size Type： | 0.0040 in0.102 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22226 |
| Shaft Size | 4-1/2 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | TAMC26K408SB TAMC26K408SC TAMC26K408SEB TAMC26K408SEC TAMC26K408SEM TAMC26K408SEN TAMC26K408SEO TAMC26K408SET TAMC26K408SM TAMC26K408SN TAMC26K408SO TAMC26K408ST |
| Locking Style | Tapered Adapter |
| Weight | 52 lb23.60 Kg |
| Housing Construction | Cartridge |
| UPC Code | 0883450124270 0883450124287 0883450124300 0883450124317 0883450124324 0883450124331 0883450124348 0883450124355 0883450200233 0883450200448 0883450277877 0883450278072 |
| Dimension A | 0.780 in19.80 mm |
| Dimension B | 1.50 in38.1 mm |
| Dimension C | 6.50 in165.1 mm |
| Dimension D | 0.31 in8.0 mm |
| Dimension F | 10.437 in265.10 mm |
| Dimension G | 4.110 in104.40 mm |
| Dimension L Exp | 4.97 in126.2 mm |
| Dimension L Fix | 4.89 in124.2 mm |
| Dimension M | 2.83 in71.9 mm |
| Dimension S | 4.760 in120.90 mm |
| C0 - Static Load | 212000 lb945 kN |
| C - Dynamic Load (Basic) | 170000 lb757 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.62 |
| Y2 - Geometry Factor | 3.90 |
| Oil Lubrication - M/N Seal | 700 rpm |
| Oil Lubrication - T Seal | 1500 rpm |
| Oil Lubrication - B/C/O Seal | 400 rpm |
| Grease Lubrication - M/N Seal | 700 rpm |
| Grease Lubrication - T Seal | 1000 rpm |
| Grease Lubrication - B/C/O Seal | 400 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0040 in0.102 mm |
| Pre Install Clearance Min | 0.0063 in0.160 mm |
| Pre Install Clearance Max | 0.0079 in0.201 mm |
| Int Radial Clearance Reduction Min | 0.0025 in0.064 mm |
| Int Radial Clearance Reduction Max | 0.0035 in0.089 mm |
| Adapter Sleeve Axial Movement Min | 0.035 in0.9 mm |
| Adapter Sleeve Axial Movement Max | 0.050 in1.270 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 6013NR | 65 | 1.1 | 0.413 | 6700 | 100 | 30500 |
| 7924C FY | 120 | 1.1 | 7924C FY | 7800 | 5900 | 165 |
| UCM211-60D1 | UCM211-60D1 | M8x1 | 55 | 22.2 | UC211D1 | 27 |
| 7003C FY | 17 | 0.150 | 0.300 | 41000 | 31000 | 7003CFY |
| 23230KEMW33 | 2.04 | 3.1 | 2.08 | 1500 | 1400 | 2.5 mm0.100 in |
| CSR20SS+280/280LP (B-M6F) | No connection | No connection | - | - | CSR20 | - |
| 688TD/672A | 3.7499 in95.247 mm | 675 | 0.030 in0.80 mm | Spacer shows standard nominal .01 radii, actual bearing may vary | Imperial | 6.6250 in168.275 mm |
| 23260EMBW507C08C2 | 1.96 | 2.98 | 2 | 580 | 530 | 4.000 mm0.160 in |
| BNFN5510-7.5RRG0+281LC0 | 281.000 | BNFN5510-7.5 | Overall thread lenght is added to the both ends of the stroke 10mm. | There is the groove on both ends of the stroke. | - | - |
| 6913ZZ | 65 | 1.0 | 7100 | 6913ZZ | 90 | 0.830 |
