Tapered Adapter Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Cartridge Block
- TAMC26K407S

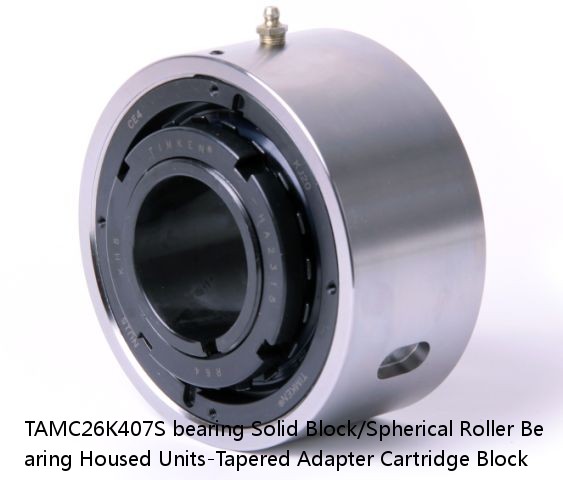

TAMC26K407S bearing | Solid Block/Spherical Roller Bearing Housed Units-Tapered Adapter Cartridge Block
TAMC26K407S PDF download| Price： | enquiry |
| Model Number： | TAMC26K407S |
| Weight： | 3.90 |
| Bearing Number： | 2.62 |
| Housing Construction： | 52 lb23.60 Kg |
| UPC Code： | 0883450124171 0883450124188 0883450124201 0883450124218 0883450124225 0883450124232 0883450124249 08 |
| Shaft Size Type： | 0.0040 in0.102 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22226 |
| Shaft Size | 4-7/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | TAMC26K407SB TAMC26K407SC TAMC26K407SEB TAMC26K407SEC TAMC26K407SEM TAMC26K407SEN TAMC26K407SEO TAMC26K407SET TAMC26K407SM TAMC26K407SN TAMC26K407SO TAMC26K407ST |
| Locking Style | Tapered Adapter |
| Weight | 52 lb23.60 Kg |
| Housing Construction | Cartridge |
| UPC Code | 0883450124171 0883450124188 0883450124201 0883450124218 0883450124225 0883450124232 0883450124249 0883450124256 0883450200226 0883450200431 0883450277860 0883450278065 |
| Dimension A | 0.780 in19.80 mm |
| Dimension B | 1.50 in38.1 mm |
| Dimension C | 6.50 in165.1 mm |
| Dimension D | 0.31 in8.0 mm |
| Dimension F | 10.437 in265.10 mm |
| Dimension G | 4.110 in104.40 mm |
| Dimension L Exp | 4.97 in126.2 mm |
| Dimension L Fix | 4.89 in124.2 mm |
| Dimension M | 2.83 in71.9 mm |
| Dimension S | 4.760 in120.90 mm |
| C0 - Static Load | 212000 lb945 kN |
| C - Dynamic Load (Basic) | 170000 lb757 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.62 |
| Y2 - Geometry Factor | 3.90 |
| Oil Lubrication - M/N Seal | 700 rpm |
| Oil Lubrication - T Seal | 1500 rpm |
| Oil Lubrication - B/C/O Seal | 400 rpm |
| Grease Lubrication - M/N Seal | 700 rpm |
| Grease Lubrication - T Seal | 1000 rpm |
| Grease Lubrication - B/C/O Seal | 400 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0040 in0.102 mm |
| Pre Install Clearance Min | 0.0063 in0.160 mm |
| Pre Install Clearance Max | 0.0079 in0.201 mm |
| Int Radial Clearance Reduction Min | 0.0025 in0.064 mm |
| Int Radial Clearance Reduction Max | 0.0035 in0.089 mm |
| Adapter Sleeve Axial Movement Min | 0.035 in0.9 mm |
| Adapter Sleeve Axial Movement Max | 0.050 in1.270 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 46340A | 140 | 200 | 4.0 | 46340A | 340 | 226 |
| SNL 511-609 + 22211 K + H 311 | SNL 511-609 | 70 | 127 | SNL 511-609 + 22211 K + H 311 | 95 | 22211 K |
| HJ-9612048 + IR-809648 | 3.0 | HJ-9612048 + IR-809648 | 8.100 | 2800 | 152.400 | 190.500 |
| ACS800-17-0870-7+C129+H359 | 750 | 600 | Cabinet Drives | 700 | 545 | 1091 |
| SE 509 + C 2209 K + HA 309 E | SE 509 | 60 | 109 | SE 509 + C 2209 K + HA 309 E | 85 | C 2209 K |
| 409000 | 409000 | 920.000 | 15.000 | 20.000 | 875.000 | 825.000 |
| 51088 F | 1500 | 1100 | 17.0 | 915.0 | 127.0 | 0.00 |
| K3x6x7T2 | K3x6x7T2 | 0.0004 | 50000 | 33000 | 3 | 6 |
| BH-208 | BH-208 | 4.50 | 31.750 | 12.700 | - | 41.275 |
| HR30317DJ | 0.40 | Standard | 85 | 3.0 | 3.0 | 4.0 |
