Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
- QMSN20J400S

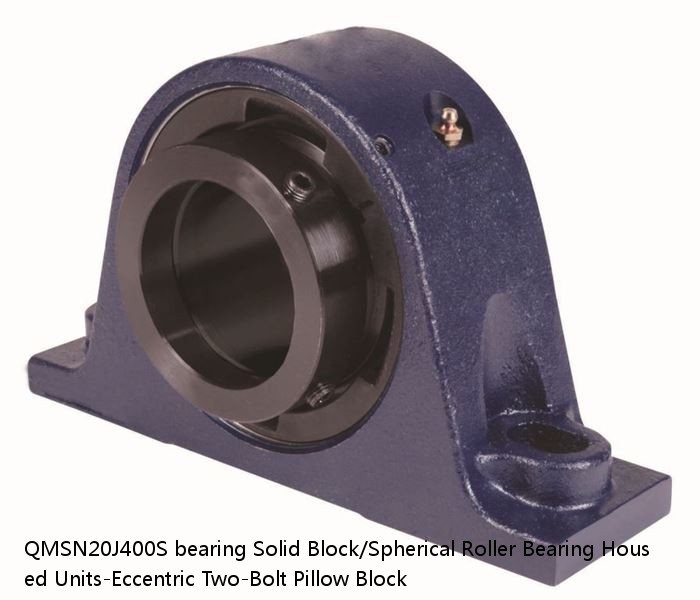

QMSN20J400S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
QMSN20J400S PDF download| Price： | enquiry |
| Model Number： | QMSN20J400S |
| Weight： | 4.24 |
| Bearing Number： | 2.85 |
| Housing Construction： | 79 lb35.9 Kg |
| UPC Code： | 0883450099028 0883450099035 0883450099059 0883450099066 0883450099073 0883450099080 0883450099097 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 4 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMSN20J400SB QMSN20J400SC QMSN20J400SEB QMSN20J400SEC QMSN20J400SEM QMSN20J400SEN QMSN20J400SEO QMSN20J400SET QMSN20J400SM QMSN20J400SN QMSN20J400SO QMSN20J400ST |
| Locking Style | Eccentric |
| Weight | 79 lb35.9 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450099028 0883450099035 0883450099059 0883450099066 0883450099073 0883450099080 0883450099097 0883450099103 0883450161084 0883450161442 0883450253741 0883450254137 |
| Dimension A | 4.92 in125.0 mm |
| Dimension B | 9.49 in241.0 mm |
| Dimension C | 5.98 in152.0 mm |
| Dimension D Max | 14.41 in366.0 mm |
| Dimension D Min | 12.56 in319.0 mm |
| Dimension F | 16.14 in410.00 mm |
| Dimension G | 3.980 in101.00 mm |
| Dimension H | 1.97 in50.0 mm |
| Dimension J (Bolt Size) | 0.875 in24 mm |
| Dimension K | 1.61 in41.0 mm |
| Dimension L | 4.96 in126.0 mm |
| Dimension M | 2.95 in75.0 mm |
| Dimension R | 0.35 in9.0 mm |
| Dimension S | 4.570 in116.00 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 7408B FY | 40 | 1.000 | 2.000 | 7200 | 5200 | 7408BFY |
| 6310/NR | 1.05 Kg | 2.000 mm | 27.000 mm | 110.000 mm | 10000 rpm | 7200 rpm |
| AOH3148 | 12.00 Kg | Tr260x4 | 1:12 | 15 mm | G1/4 | 154.00 mm |
| E/TTU/TRB/90MM/ECO/ECO | 2.07 | 1.71 | 0.7 | 0.87 | 42 lb | 0883450509626 |
| BH-1410 | BH-1410 | 4.85 | 22.225 | 15.880 | - | 30.163 |
| 23138CKE4 | 23138CKE4 | 34.50 | 320 | 2.2 | 3.3 | 2.2 |
| 24176KYMBW33W45AC3 | 1.83 | 2.79 | 1.87 | 320 | 300 | 4.000 mm0.160 in |
| 1000 VA V | 1000 VA V | 1015.000 | 15.000 | 20.000 | 965.000 | 910.000 |
| SAA 80 TXE-2LS | 585.000 | 1140.000 | 182.000 | 80.000 | 48.000 | 55.000 |
| QVPG26V115S | 3.90 | 2.62 | 136 lb61.70 Kg | 0883450051811 0883450287159 0883450287173 0883450288675 0883450288699 0883450290197 0883450290210 08 | 0.0050 in0.127 mm | 115 mm |
