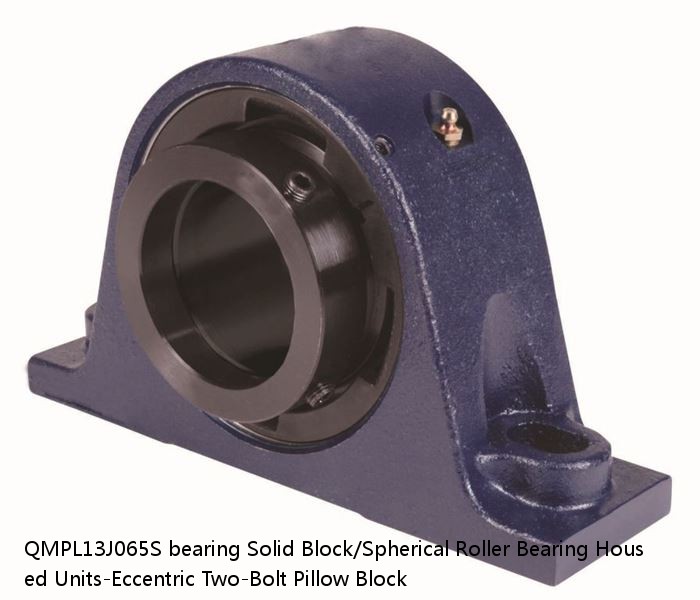

QMPL13J065S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
QMPL13J065S PDF download| Price： | enquiry |
| Model Number： | QMPL13J065S |
| Weight： | 4.15 |
| Bearing Number： | 2.79 |
| Housing Construction： | 22.00 lb10.00 Kg |
| UPC Code： | 0883450087421 0883450087438 0883450087452 0883450087469 0883450087476 0883450087483 0883450087490 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22213 |
| Shaft Size | 65 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QMPL13J065SB QMPL13J065SC QMPL13J065SEB QMPL13J065SEC QMPL13J065SEM QMPL13J065SEN QMPL13J065SEO QMPL13J065SET QMPL13J065SM QMPL13J065SN QMPL13J065SO QMPL13J065ST |
| Locking Style | Eccentric |
| Weight | 22.00 lb10.00 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450087421 0883450087438 0883450087452 0883450087469 0883450087476 0883450087483 0883450087490 0883450087506 0883450155090 0883450155434 0883450250061 0883450250405 |
| Dimension A | 2.75 in69.9 mm |
| Dimension B | 5.8 in147.3 mm |
| Dimension C | 3.62 in91.9 mm |
| Dimension D Max | 7.44 in189.0 mm |
| Dimension D Min | 6.81 in173.0 mm |
| Dimension F | 9.250 in235.00 mm |
| Dimension G | 2.900 in73.70 mm |
| Dimension H | 1.38 in35.1 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension K | 1.24 in31.5 mm |
| Dimension L | 3.58 in90.9 mm |
| Dimension M | 2.13 in54.1 mm |
| Dimension R | 0.21 in5.3 mm |
| Dimension S | 3.37 in85.6 mm |
| C0 - Static Load | 48600 lb216 kN |
| C - Dynamic Load (Basic) | 46400 lb206 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.79 |
| Y2 - Geometry Factor | 4.15 |
| Oil Lubrication - M/N Seal | 1800 rpm |
| Oil Lubrication - T Seal | 3200 rpm |
| Oil Lubrication - B/C/O Seal | 1500 rpm |
| Grease Lubrication - M/N Seal | 1800 rpm |
| Grease Lubrication - T Seal | 2800 rpm |
| Grease Lubrication - B/C/O Seal | 1500 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.0016 in0.040 mm |
| Pre Install Clearance Max | 0.0026 in0.065 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| ACS580-01-052A-4-Architecture300 | 19 | 203 | 40 | 30 | 52 | 40 |
| 22234EW33 | 170 | 4.0 | 30.00 | 1900 | 1400 | 310 |
| H3276 | 69.60 Kg | Tr380x5 | MS 3176 | HM3176 | 310.00 mm | 490 mm |
| H3944 | 8.16 Kg | Tr220x4 | MS3044 | HM 3044 | 96.00 mm | 260 mm |
| 23180E | 400 | 6.0 | 266.00 | 720 | 570 | 650 |
| R-ARF2530 | R-ARF2530 | 31 | 25 | 30 | 0.8 | 3.0 |
| 23156KEJW507C08C3 | 2.21 | 3.36 | 2.26 | 23156KCJW507C08C3 | 870 | 770 |
| JLM714149/JLM714110 | 25.000 mm0.9843 in | LM714100 | 2.54 mm0.1 in | 3.050 mm0.12 in | 76.3 | METRIC |
| 7006CDB FY | 30 | 1.0 | 7006CDB FY | 21000 | 16000 | 55 |
| QVVC11V200S | 4.40 | 2.95 | 10 lb4.5 Kg | 0883450090810 0883450090988 0883450101899 0883450102001 0883450109147 0883450109284 0883450117562 08 | 0.0015 in0.038 mm | 2 in |
