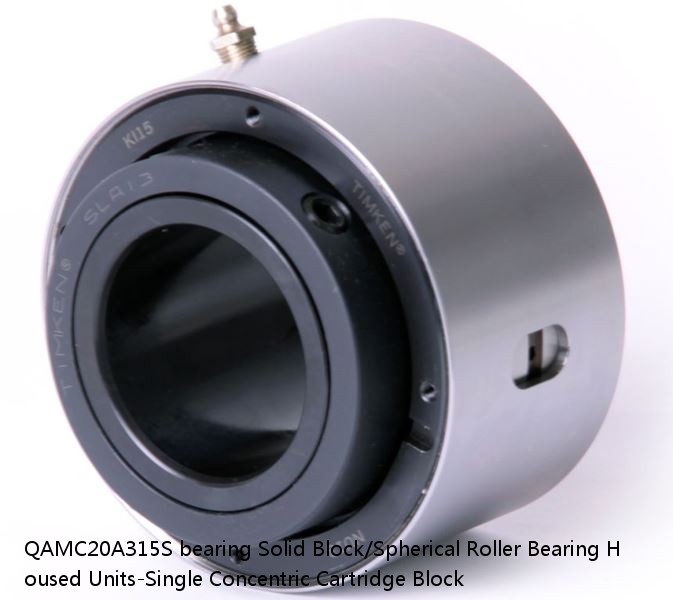

QAMC20A315S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Cartridge Block
QAMC20A315S PDF download| Price： | enquiry |
| Model Number： | QAMC20A315S |
| Weight： | 4.24 |
| Bearing Number： | 2.85 |
| Housing Construction： | 32 lb14.5 Kg |
| UPC Code： | 0883450044004 0883450044011 0883450044035 0883450044042 0883450044059 0883450044066 0883450044073 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 3-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QAMC20A315SB QAMC20A315SC QAMC20A315SEB QAMC20A315SEC QAMC20A315SEM QAMC20A315SEN QAMC20A315SEO QAMC20A315SET QAMC20A315SM QAMC20A315SN QAMC20A315SO QAMC20A315ST |
| Locking Style | Single Concentric |
| Weight | 32 lb14.5 Kg |
| Housing Construction | Cartridge |
| UPC Code | 0883450044004 0883450044011 0883450044035 0883450044042 0883450044059 0883450044066 0883450044073 0883450044080 0883450194631 0883450194792 0883450271806 0883450271967 |
| Dimension A | 0.780 in19.80 mm |
| Dimension B | 1.28 in32.5 mm |
| Dimension C | 6.00 in152.4 mm |
| Dimension D | 0.31 in7.9 mm |
| Dimension F | 8.1250 in206.40 mm |
| Dimension G | 4.140 in105.20 mm |
| Dimension KA | 1.63 in41.4 mm |
| Dimension L Exp | 5.13 in130.3 mm |
| Dimension L Fix | 5.05 in128.3 mm |
| Dimension M | 2.97 in75.4 mm |
| Dimension RA | 0.45 in11.4 mm |
| Dimension SA | 4.59 in116.6 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.0030 in0.075 mm |
| Pre Install Clearance Max | 0.0047 in0.120 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 7326DF FY | 130 | 1.5 | 4.0 | 2700 | 2200 | 7326DFFY |
| QVF26V408S | 3.61 | 2.43 | 63.0 lb28.6 Kg | 0883450091664 0883450091794 0883450104647 0883450104784 0883450110303 0883450110525 0883450120579 08 | 0.0050 in0.127 mm | 4-1/2 in |
| 32328 | 0.88 | Standard | 140 | 4.0 | 4.0 | 5.0 |
| KT 162013 | 16 | KT 162013 | 6.8 | 16 | 20 | 8620 |
| NUP328 | 140 | 4.0 | 4.0 | 22.400 | 2400 | 2000 |
| TAFK11K115S | 3.93 | 2.64 | 11.0 lb5.0 Kg | 0.0030 in0.076 mm | 1-15/16 in | Imperial |
| 498/492A | 30.162 | 84.138 | 3.2 | 3.6 | 3600 | 2700 |
| QMFX13J208S | 4.00 | 2.69 | 14 lb6.4 Kg | 0883450143165 0883450143172 0883450143189 0883450143196 0883450143202 0883450143219 0883450143226 08 | 0.0015 in0.038 mm | 2-1/2 in |
| TUJ 509 | 144.000 | 85.000 | 49.000 | 117.000 | - | 102.000 |
| WJ-354112 | 0.070 / 0.155 | 55.550 / 2.1870 | 55.563 / 2.1875 | 2 3/16 | 7800 | 5000 |
