Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
- QMPL15J215S

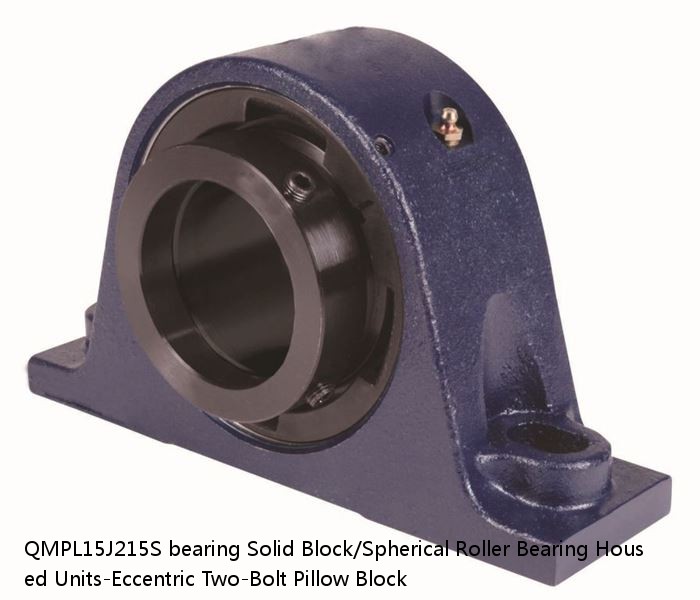

QMPL15J215S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
QMPL15J215S PDF download| Price： | enquiry |
| Model Number： | QMPL15J215S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 28 lb12.7 Kg |
| UPC Code： | 0883450088121 0883450088138 0883450088152 0883450088169 0883450088176 0883450088183 0883450088190 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 2-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QMPL15J215SB QMPL15J215SC QMPL15J215SEB QMPL15J215SEC QMPL15J215SEM QMPL15J215SEN QMPL15J215SEO QMPL15J215SET QMPL15J215SM QMPL15J215SN QMPL15J215SO QMPL15J215ST QMPL15J215STNP |
| Locking Style | Eccentric |
| Weight | 28 lb12.7 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450088121 0883450088138 0883450088152 0883450088169 0883450088176 0883450088183 0883450088190 0883450088206 0883450155137 0883450155472 0883450250108 0883450250443 0883450457453 |
| Dimension A | 3.25 in82.6 mm |
| Dimension B | 6.59 in167.4 mm |
| Dimension C | 4.01 in101.9 mm |
| Dimension D Max | 8.40 in213.4 mm |
| Dimension D Min | 7.70 in195.6 mm |
| Dimension F | 10.44 in265.2 mm |
| Dimension G | 3.0000 in76.200 mm |
| Dimension H | 1.38 in35.1 mm |
| Dimension J (Bolt Size) | 0.750 in20 mm |
| Dimension K | 1.25 in31.8 mm |
| Dimension L | 3.87 in98.3 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension R | 0.25 in6.4 mm |
| Dimension S | 3.62 in91.9 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| NJ215ET7 & | HPS | 75 | 1.5 | 1.5 | 1.5 | 1.5 |
| 7018ADB | Standard | 90 | 1.5 | 1.5 | 7018ADB | 5300 |
| 32324U | 90.50 | 120 | 3.0 | 4.0 | 32324U | 22.40 |
| 7322C FY | 110 | 1.100 | 3.000 | 5900 | 4500 | 7322CFY |
| K 89313 TN | 2800 | 1400 | 640.000 | 153.000 | 0.000 | 9.000 |
| AOH3268G | 31.90 Kg | Tr360x5 | 1:12 | 15 mm | G1/4 | 264.00 mm |
| CF 16VBUUR | 58.5 | 16 | 0.6 | 3 | 6 | 26 |
| 30319DU | 49.50 | 95 | 3.0 | 4.0 | 30319DU | 6.47 |
| HK2012FM | HK2012FM | 0.014 | 12000 | 8000 | IR15x20x13 | 20 |
| 1726212-2RS1-75.5 | 110 | - | - | 0.000 | 36.000 | 52.700 |
