Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
- QMPL15J075S

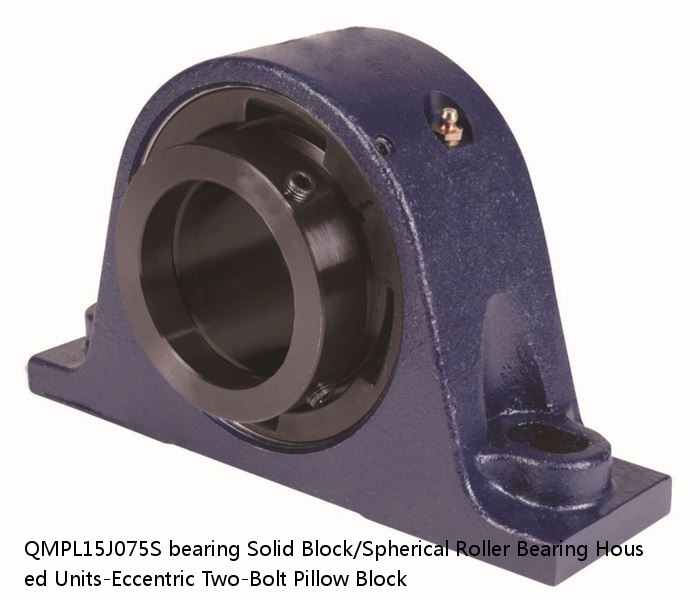

QMPL15J075S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
QMPL15J075S PDF download| Price： | enquiry |
| Model Number： | QMPL15J075S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 28 lb12.7 Kg |
| UPC Code： | 0883450087827 0883450087834 0883450087858 0883450087865 0883450087872 0883450087889 0883450087896 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 75 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QMPL15J075SB QMPL15J075SC QMPL15J075SEB QMPL15J075SEC QMPL15J075SEM QMPL15J075SEN QMPL15J075SEO QMPL15J075SET QMPL15J075SM QMPL15J075SN QMPL15J075SO QMPL15J075ST |
| Locking Style | Eccentric |
| Weight | 28 lb12.7 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450087827 0883450087834 0883450087858 0883450087865 0883450087872 0883450087889 0883450087896 0883450087902 0883450155151 0883450155496 0883450250122 0883450250467 |
| Dimension A | 3.25 in82.6 mm |
| Dimension B | 6.59 in167.4 mm |
| Dimension C | 4.01 in101.9 mm |
| Dimension D Max | 8.40 in213.4 mm |
| Dimension D Min | 7.70 in195.6 mm |
| Dimension F | 10.44 in265.2 mm |
| Dimension G | 3.0000 in76.200 mm |
| Dimension H | 1.38 in35.1 mm |
| Dimension J (Bolt Size) | 0.750 in20 mm |
| Dimension K | 1.25 in31.8 mm |
| Dimension L | 3.87 in98.3 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension R | 0.25 in6.4 mm |
| Dimension S | 3.62 in91.9 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| QMC18J303S | 4.31 | 2.90 | 32 lb14.5 Kg | 0883450060226 0883450060233 0883450060257 0883450060264 0883450060271 0883450060288 0883450060295 08 | 0.0030 in0.076 mm | 3-3/16 in |
| 7316DF FY | 80 | 2.1 | 7316DF FY | 4700 | 3800 | 170 |
| 7212DT FY | 60 | 1.5 | 7212DT FY | 6900 | 5500 | 110 |
| NNU49/560K | 18 | 560 | 4 | 5.0 | NNU49/560K | 580 |
| E/P2B/TRB/2 15/16/ECO | 2.26 | 1.87 | 0.7 | 0.87 | 29 lb | 0883450507219 |
| 7005DT | 25 | 0.30 | 0.6 | 0.182 | 13000 | 10000 |
| BH-2020 | 0.102 / 0.224 | 1.2500 / 1.6250 / 1.250 | 1 1/4 | 31.750 / 1.2500 | 41.275 / 1.6250 | 17.6 |
| HH 258248/210 | 141.288 | 1300 | 850 | 355.000 | 4550.000 | 2330.000 |
| LG6L+100L | LG6L | - | - | - | - | - |
| 7336DF | 180 | 1.50 | 4.0 | 82.600 | 1600 | 1200 |
