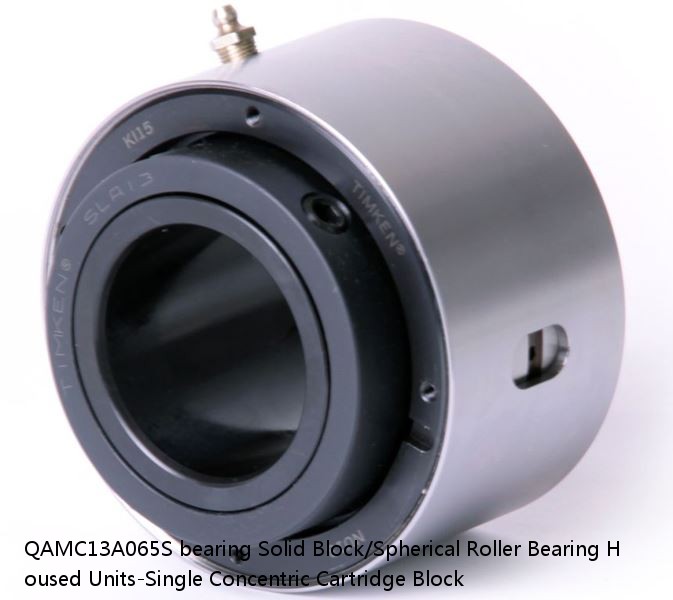

QAMC13A065S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Cartridge Block
QAMC13A065S PDF download| Price： | enquiry |
| Model Number： | QAMC13A065S |
| Weight： | 4.15 |
| Bearing Number： | 2.79 |
| Housing Construction： | 12 lb5.4 Kg |
| UPC Code： | 0883450043106 0883450043113 0883450043137 0883450043144 0883450043151 0883450043168 0883450043175 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22213 |
| Shaft Size | 65 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QAMC13A065SB QAMC13A065SC QAMC13A065SEB QAMC13A065SEC QAMC13A065SEM QAMC13A065SEN QAMC13A065SEO QAMC13A065SET QAMC13A065SM QAMC13A065SN QAMC13A065SO QAMC13A065ST |
| Locking Style | Single Concentric |
| Weight | 12 lb5.4 Kg |
| Housing Construction | Cartridge |
| UPC Code | 0883450043106 0883450043113 0883450043137 0883450043144 0883450043151 0883450043168 0883450043175 0883450043182 0883450194563 0883450194723 0883450271738 0883450271899 |
| Dimension A | 0.530 in13.50 mm |
| Dimension B | 0.91 in23.1 mm |
| Dimension C | 3.81 in96.8 mm |
| Dimension D | 0.19 in4.8 mm |
| Dimension F | 5.0000 in127 mm |
| Dimension G | 2.730 in69.30 mm |
| Dimension KA | 1.24 in31.5 mm |
| Dimension L Exp | 3.46 in87.9 mm |
| Dimension L Fix | 3.38 in85.9 mm |
| Dimension M | 2.15 in54.6 mm |
| Dimension RA | 0.00 in0.0 mm |
| Dimension SA | 3.39 in86.1 mm |
| C0 - Static Load | 48600 lb216 kN |
| C - Dynamic Load (Basic) | 46400 lb206 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.79 |
| Y2 - Geometry Factor | 4.15 |
| Oil Lubrication - M/N Seal | 1800 rpm |
| Oil Lubrication - T Seal | 3200 rpm |
| Oil Lubrication - B/C/O Seal | 1500 rpm |
| Grease Lubrication - M/N Seal | 1800 rpm |
| Grease Lubrication - T Seal | 2800 rpm |
| Grease Lubrication - B/C/O Seal | 1500 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.0016 in0.040 mm |
| Pre Install Clearance Max | 0.0026 in0.065 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 432221XU | 105 | 1.0 | 3.0 | 432221XU | 13.100 | 2100 |
| HA450234ALN1P##---+(12) | HA45AL | 12.00 | - | - | - | - |
| 62172RS | 85 | 2.0 | 62172RS | 4200 | 150 | 3.7 |
| QACW15A212S | 4.67 | 3.14 | 22.00 lb10.00 Kg | 0883450324786 0883450324793 0883450324809 0883450324816 0883450324823 0883450324830 0883450324847 08 | 0.0020 in0.051 mm | 2-3/4 in |
| 3MV9314WI | 1 mm0.039 in | 1 mm0.039 in | 23600 rpm | 11800 rpm | 8.73125 mm11/32 in | METRIC |
| QVVC14V207S | 4.32 | 2.90 | 16 lb7.30 Kg | 0883450063012 0883450069441 0883450081849 0883450184229 0883450184410 0883450184601 0883450213158 08 | 0.0015 in0.038 mm | 2-7/16 in |
| 6815ZZ | 75 | 0.6 | 6815ZZ | 6400 | 95 | 0.66 |
| 23138EJW507C08C2 | 2.21 | 3.36 | 2.26 | 23138CJW507C08C2 | 1400 | 1200 |
| ACS800-U7-0550-5 | 450 | 400 | 670 | 590 | 1017 | R8 |
| 449/432 | 27.783 | 34.925 | 0.80 | 449/432 | 5900 | 4500 |
