Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
- QMPL09J040S

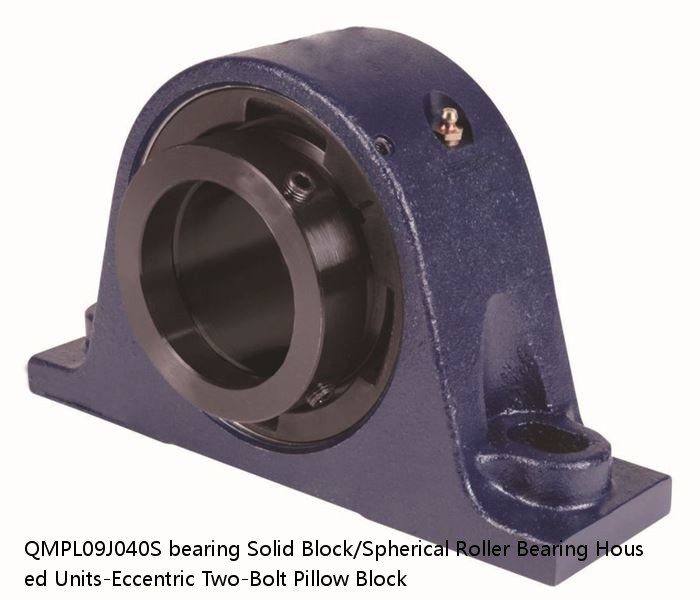

QMPL09J040S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
QMPL09J040S PDF download| Price： | enquiry |
| Model Number： | QMPL09J040S |
| Weight： | 3.93 |
| Bearing Number： | 2.64 |
| Housing Construction： | 10 lb4.5 Kg |
| UPC Code： | 0883450249942 0883450250283 0883450294829 0883450294836 0883450294843 0883450294850 0883450294867 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22209 |
| Shaft Size | 40 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QMPL09J040SB QMPL09J040SC QMPL09J040SEB QMPL09J040SEC QMPL09J040SEM QMPL09J040SEN QMPL09J040SEO QMPL09J040SET QMPL09J040SM QMPL09J040SN QMPL09J040SO QMPL09J040ST |
| Locking Style | Eccentric |
| Weight | 10 lb4.5 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450249942 0883450250283 0883450294829 0883450294836 0883450294843 0883450294850 0883450294867 0883450294874 0883450294881 0883450294898 0883450294904 0883450294911 |
| Dimension A | 2.13 in54.1 mm |
| Dimension B | 4.13 in104.9 mm |
| Dimension C | 2.62 in66.5 mm |
| Dimension D Max | 5.75 in146.1 mm |
| Dimension D Min | 5.25 in133.4 mm |
| Dimension F | 7.13 in181.1 mm |
| Dimension G | 2.370 in60.20 mm |
| Dimension H | 1.25 in31.8 mm |
| Dimension J (Bolt Size) | 0.500 in12 mm |
| Dimension K | 1 in25.4 mm |
| Dimension L | 3.06 in77.7 mm |
| Dimension M | 1.88 in47.8 mm |
| Dimension R | 0.19 in4.8 mm |
| Dimension S | 2.880 in73.20 mm |
| C0 - Static Load | 24200 lb108 kN |
| C - Dynamic Load (Basic) | 24500 lb109 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.64 |
| Y2 - Geometry Factor | 3.93 |
| Oil Lubrication - M/N Seal | 2700 rpm |
| Oil Lubrication - T Seal | 4500 rpm |
| Oil Lubrication - B/C/O Seal | 1950 rpm |
| Grease Lubrication - M/N Seal | 2700 rpm |
| Grease Lubrication - T Seal | 4000 rpm |
| Grease Lubrication - B/C/O Seal | 1950 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0014 |
| Eng Internal Radial Clearance - Max | 0.0022 |
| Pre Install Clearance Min | 0.0014 in0.035 mm |
| Pre Install Clearance Max | 0.0022 in0.055 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 16150/282 | 19.000 | 38.100 | 3.60 | 16150/282 | 7400 | 5600 |
| 6310/Z/NR/C3 | 1.05 Kg | 2.000 mm | 27.000 mm | 110.000 mm | 10000 rpm | 7200 rpm |
| 22217KEJW33C4 | 3 | 4.57 | 3.07 | 22217KCJW33C4 | 4200 | 3400 |
| E/P2B/TRB/85MM/ECO/ECC | 2.07 | 1.71 | 0.7 | 0.87 | 45 lb | 0883450505819 |
| GEZM 104 ESX-2LS | 260.000 | 129.000 | 5.000 | 31.750 | 50.8000 | 300 |
| 22308EMW33 | 1.83 | 2.79 | 1.87 | 6700 | 5600 | 1.50 mm0.060 in |
| UKP324+H2324 | A-PT1/8 | 110 / Heavy-Duty (3) | 110 | Heavy-Duty (3) | UKP324+H2324 | - |
| LM739035-1 | 1.00 | LM739035-1 | 0.670 | 4800 | 73 | 90 |
| 24076EMBW33W45A | 2.27 | 3.45 | 2.32 | 570 | 510 | 4.000 mm0.160 in |
| 7322CDT FY | 110 | 1.1 | 3.0 | 4700 | 3500 | 7322CDTFY |
