Eccentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
- QMP13J060S

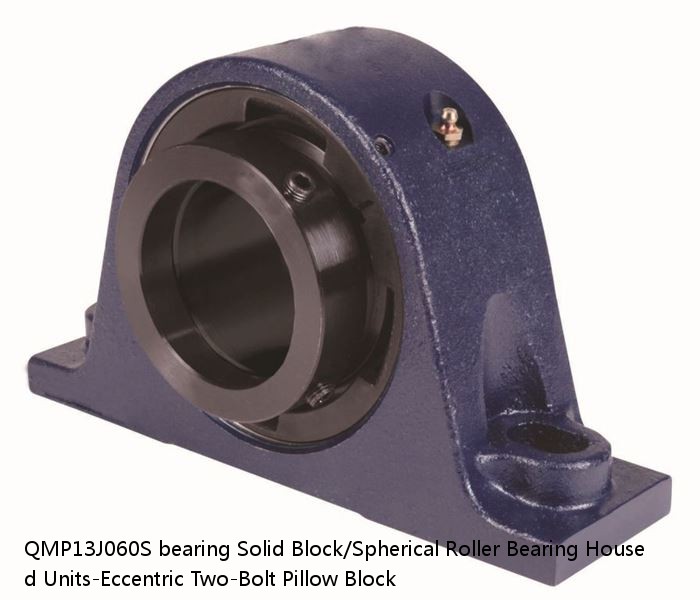

QMP13J060S bearing | Solid Block/Spherical Roller Bearing Housed Units-Eccentric Two-Bolt Pillow Block
QMP13J060S PDF download| Price： | enquiry |
| Model Number： | QMP13J060S |
| Weight： | 4.15 |
| Bearing Number： | 2.79 |
| Housing Construction： | 22.00 lb10.00 Kg |
| UPC Code： | 0883450329699 0883450329705 0883450329927 0883450329934 0883450329941 0883450329958 0883450329965 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22213 |
| Shaft Size | 60 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QMP13J060SC QMP13J060SEB QMP13J060SEC QMP13J060SEM QMP13J060SEN QMP13J060SEO QMP13J060SET QMP13J060SM QMP13J060SMNG QMP13J060SN QMP13J060SO QMP13J060ST QMP13J060STNG |
| Locking Style | Eccentric |
| Weight | 22.00 lb10.00 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450329699 0883450329705 0883450329927 0883450329934 0883450329941 0883450329958 0883450329965 0883450329972 0883450329989 0883450329996 0883450330008 0883450432177 0883450499910 |
| Dimension A | 2.75 in69.9 mm |
| Dimension B | 5.8 in147.3 mm |
| Dimension C | 3.62 in91.9 mm |
| Dimension D Max | 8.63 in219.2 mm |
| Dimension D Min | 6.88 in174.8 mm |
| Dimension F | 10.250 in260.4 mm |
| Dimension G | 2.900 in73.70 mm |
| Dimension H | 1.38 in35.1 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension K | 1.24 in31.5 mm |
| Dimension L | 3.59 in91.2 mm |
| Dimension M | 2.13 in54.1 mm |
| Dimension R | 0.21 in5.3 mm |
| Dimension S | 3.37 in85.6 mm |
| C0 - Static Load | 48600 lb216 kN |
| C - Dynamic Load (Basic) | 46400 lb206 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.79 |
| Y2 - Geometry Factor | 4.15 |
| Oil Lubrication - M/N Seal | 1800 rpm |
| Oil Lubrication - T Seal | 3200 rpm |
| Oil Lubrication - B/C/O Seal | 1500 rpm |
| Grease Lubrication - M/N Seal | 1800 rpm |
| Grease Lubrication - T Seal | 2800 rpm |
| Grease Lubrication - B/C/O Seal | 1500 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0016 |
| Eng Internal Radial Clearance - Max | 0.0026 |
| Pre Install Clearance Min | 0.0016 in0.040 mm |
| Pre Install Clearance Max | 0.0026 in0.065 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 51264X | 2.5 | 3.0 | 320 | 51264X | 670 | 45.000 |
| 6322/NR/C3 | 9.48 Kg | 3.000 mm | 50.000 mm | 240.000 mm | 5500 rpm | 3900 rpm |
| VH450162ELN1K#Z--L+(28.5) | VH45EL | 28.5 | - | - | - | - |
| NF412 | 60 | 2.1 | 2.1 | 3.020 | 5300 | 4300 |
| 420x460x20 HS7 R | 420.0000 | 460.000 | 420x460x20 HS7 R | R | HS7 | 0.000 |
| C 3188 KMB + AOHX 3188 G | 850 | 630 | - | 420.000 | 780.000 | 11400.000 |
| BRI 61816 UU | 9.525 | 0.6 | BRI 61816 UU | 79.0 | 15.875 | 24.5 |
| 16012 | 60 | 0.6 | 16012 | 0.28 | 8300 | 7000 |
| NUP2211 | 55 | 1.1 | 1.5 | 0.780 | 7400 | 6200 |
| NK75/35R | 0.60 | NK75/35R | 0.4920 | 5500 | 3700 | 92 |
