Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Round Flange Block
- QVVFY26V110S

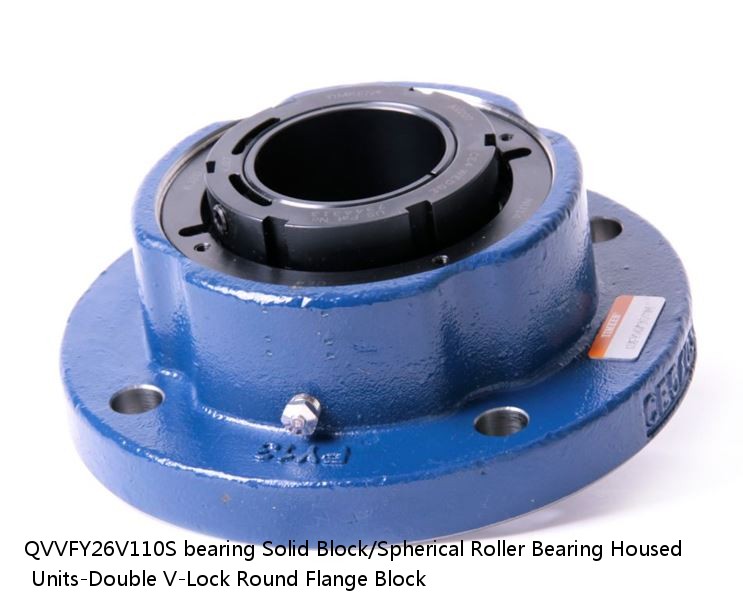

QVVFY26V110S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Round Flange Block
QVVFY26V110S PDF download| Price： | enquiry |
| Model Number： | QVVFY26V110S |
| Weight： | 3.61 |
| Bearing Number： | 2.43 |
| Housing Construction： | 108.0 lb49.0 Kg |
| UPC Code： | 0883450069342 0883450069359 0883450286206 0883450286282 0883450287906 0883450287982 0883450289429 08 |
| Shaft Size Type： | 0.0050 in0.127 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22226 |
| Shaft Size | 110 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVVFY26V110SB QVVFY26V110SC QVVFY26V110SEB QVVFY26V110SEC QVVFY26V110SEM QVVFY26V110SEN QVVFY26V110SEO QVVFY26V110SET QVVFY26V110SM QVVFY26V110SN QVVFY26V110SO QVVFY26V110ST |
| Locking Style | Double V-Lock |
| Weight | 108.0 lb49.0 Kg |
| Housing Construction | Round Flange |
| UPC Code | 0883450069342 0883450069359 0883450286206 0883450286282 0883450287906 0883450287982 0883450289429 0883450289504 0883450290944 0883450291026 0883450292467 0883450292542 |
| Dimension BC | 12.88 in327.2 mm |
| Dimension C | 6.880 in174.80 mm |
| Dimension D | 9.06 in230.1 mm |
| Dimension E | 6.44 in163.6 mm |
| Dimension F | 15.13 in384.3 mm |
| Dimension H | 1.50 in38.1 mm |
| Dimension J (Bolt Size) | 1 in24 mm |
| Dimension L Exp | 5.62 in142.7 mm |
| Dimension L Fix | 5.53 in140.5 mm |
| Dimension N | 4.210 in106.90 mm |
| Dimension RVV | 1.49 in37.8 mm |
| Dimension SVV | 7.02 in178.3 mm |
| C - Dynamic Load (Basic) | 170000 lb757 kN |
| C0 - Static Load | 212000 lb945 kN |
| e - Geometry Factor | 0.26 |
| Y1 - Geometry Factor | 2.43 |
| Y2 - Geometry Factor | 3.61 |
| Oil Lubrication - M/N Seal | 700 rpm |
| Oil Lubrication - T Seal | 1500 rpm |
| Oil Lubrication - B/C/O Seal | 400 rpm |
| Grease Lubrication - M/N Seal | 700 rpm |
| Grease Lubrication - T Seal | 1000 rpm |
| Grease Lubrication - B/C/O Seal | 400 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0050 in0.127 mm |
| Eng Internal Radial Clearance - Min | 0.0063 |
| Eng Internal Radial Clearance - Max | 0.0079 |
| Pre Install Clearance Min | 0.135 mm0.0053 in |
| Pre Install Clearance Max | 0.170 mm0.0067 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 60222RU | 110 | 2.0 | 60222RU | 3800 | 170 | 3.55 |
| 7224DT FY | 120 | 1.1 | 2.1 | 3400 | 2700 | 7224DTFY |
| TCJ1 3/8 | 3.94 lb1.787 Kg | 117.5 mm4.626 in | 3440 lbf15300 N | 1 3/8 in34.9 mm | Industrial | Tri-Ply Seal |
| YCRS-44 | 19.050 | YCRS-44 | 1.000 | 4650 | 45500 | 34.9 |
| YEL 204-012-2F-28.2 | 47 | 14 | - | 0.000 | 6.550 | 12.700 |
| QVF16V215S | 4.48 | 3.01 | 23 lb10.40 Kg | 0883450040099 0883450040129 0883450107532 0883450107570 0883450178396 0883450210744 0883450211123 08 | 0.0020 in0.051 mm | 2-15/16 in |
| 7418DT FY | 90 | 1.5 | 4.0 | 3100 | 2100 | 7418DTFY |
| NF203 | 17 | 0.3 | 0.6 | 0.080 | 19000 | 16000 |
| QMFX20J100S | 4.23 | 2.84 | 35 lb15.90 Kg | 0883450145060 0883450145077 0883450145084 0883450145091 0883450145107 0883450145114 0883450145121 08 | 0.0030 in0.076 mm | 100 mm |
| 6921-12RU | 105 | 1.1 | 6921-12RU | 4300 | 145 | 1.95 |
