Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Round Flange Block
- QVVFY16V215S

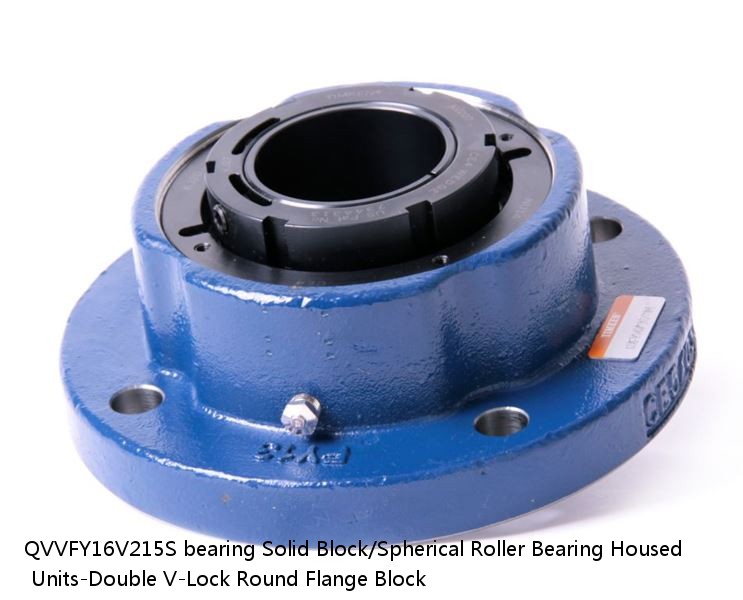

QVVFY16V215S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Round Flange Block
QVVFY16V215S PDF download| Price： | enquiry |
| Model Number： | QVVFY16V215S |
| Weight： | 4.48 |
| Bearing Number： | 3.01 |
| Housing Construction： | 28 lb12.7 Kg |
| UPC Code： | 0883450069250 0883450069267 0883450069274 0883450182386 0883450182577 0883450182768 0883450212458 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22216 |
| Shaft Size | 2-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QVVFY16V215SB QVVFY16V215SC QVVFY16V215SEB QVVFY16V215SEC QVVFY16V215SEM QVVFY16V215SEN QVVFY16V215SEO QVVFY16V215SET QVVFY16V215SM QVVFY16V215SN QVVFY16V215SO QVVFY16V215ST |
| Locking Style | Double V-Lock |
| Weight | 28 lb12.7 Kg |
| Housing Construction | Round Flange |
| UPC Code | 0883450069250 0883450069267 0883450069274 0883450182386 0883450182577 0883450182768 0883450212458 0883450212830 0883450224871 0883450225250 0883450237291 0883450237673 |
| Dimension BC | 7.88 in200.2 mm |
| Dimension C | 4.190 in106.40 mm |
| Dimension D | 6.63 in168.4 mm |
| Dimension E | 5.56 in141.2 mm |
| Dimension F | 9.5 in241.3 mm |
| Dimension H | 0.94 in23.9 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension L Exp | 3.56 in90.4 mm |
| Dimension L Fix | 3.48 in88.4 mm |
| Dimension N | 3.0000 in76.200 mm |
| Dimension RVV | 0.60 in15.2 mm |
| Dimension SVV | 4.08 in103.6 mm |
| C - Dynamic Load (Basic) | 57200 lb254 kN |
| C0 - Static Load | 62500 lb278 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.01 |
| Y2 - Geometry Factor | 4.48 |
| Oil Lubrication - M/N Seal | 1500 rpm |
| Oil Lubrication - T Seal | 2650 rpm |
| Oil Lubrication - B/C/O Seal | 1200 rpm |
| Grease Lubrication - M/N Seal | 1500 rpm |
| Grease Lubrication - T Seal | 2200 rpm |
| Grease Lubrication - B/C/O Seal | 1150 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.095 mm0.0037 in |
| Pre Install Clearance Max | 0.120 mm0.0047 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| CFKRE 80 R | 438.00 | - | 6 | 49.0 | CFKRE 80 R | 1920.0 |
| 6407/C3 | 0.95 Kg | 1.500 mm | 25.000 mm | 100.000 mm | 12000 rpm | 8500 rpm |
| SNW/10 x 1 3/4 | -0.003 in | 1:12 | S-10 x 1 3/4 | 222K | 0.558 in | W-10 |
| 22230EJW33C4 | 2.63 | 4 | 2.69 | 22230CJW33C4 | 2400 | 2000 |
| 24096R | 6.0 | 430 | 320 | 24096R | 700 | 514 |
| EN20 | 12 | - | 20 | 1.00 | 0.60 | 1.00 |
| QVPN13V203S | 4.15 | 2.79 | 20 lb9.10 Kg | 0883450145206 0883450145541 0883450151214 0883450151368 0883450161893 0883450162104 0883450181341 08 | 0.0015 in0.038 mm | 2-3/16 in |
| SYR-3.11/16-3 | 41.27500 | 700 | 0.79375 | 5.338 | 71.1715 | 55.158 |
| NN49/630K | 20 | 630 | 5 | 6.0 | NN49/630K | 656 |
| SAF 22526 | LOR 117 | Triple Ring Seal | SAF526 | 11.5625 in | SAF22526 | 14.6250 in |
