Double V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Round Flange Block
- QVVFY12V055S

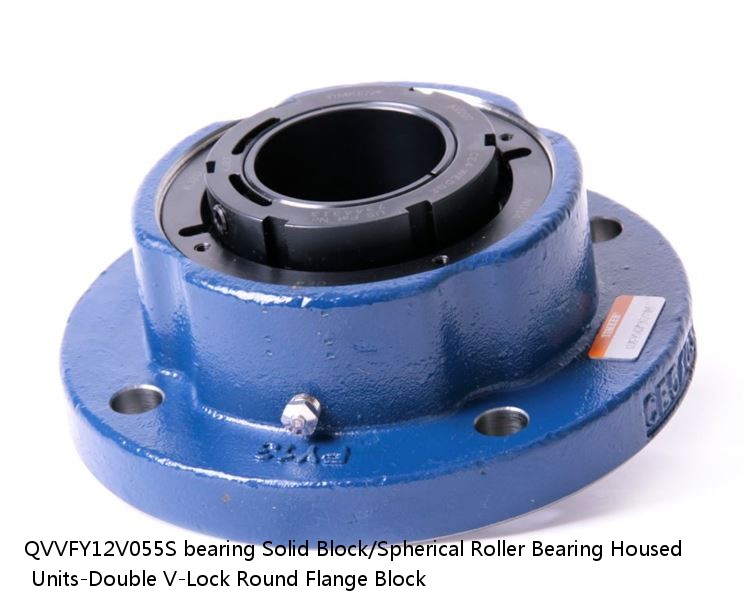

QVVFY12V055S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double V-Lock Round Flange Block
QVVFY12V055S PDF download| Price： | enquiry |
| Model Number： | QVVFY12V055S |
| Weight： | 4.25 |
| Bearing Number： | 2.86 |
| Housing Construction： | 15.0 lb6.8 Kg |
| UPC Code： | 0883450093019 0883450093644 0883450106245 0883450106443 0883450112536 0883450112727 0883450124492 08 |
| Shaft Size Type： | 0.0015 in0.038 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22212 |
| Shaft Size | 55 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVVFY12V055SB QVVFY12V055SC QVVFY12V055SEB QVVFY12V055SEC QVVFY12V055SEM QVVFY12V055SEN QVVFY12V055SEO QVVFY12V055SET QVVFY12V055SM QVVFY12V055SN QVVFY12V055SO QVVFY12V055ST |
| Locking Style | Double V-Lock |
| Weight | 15.0 lb6.8 Kg |
| Housing Construction | Round Flange |
| UPC Code | 0883450093019 0883450093644 0883450106245 0883450106443 0883450112536 0883450112727 0883450124492 0883450125161 0883450137201 0883450137331 0883450144322 0883450144858 |
| Dimension BC | 6.38 in162.1 mm |
| Dimension C | 3.160 in80.30 mm |
| Dimension D | 5.13 in130.3 mm |
| Dimension E | 4.51 in114.6 mm |
| Dimension F | 7.75 in196.9 mm |
| Dimension H | 0.75 in19.1 mm |
| Dimension J (Bolt Size) | 0.625 in16 mm |
| Dimension L Exp | 3.23 in82 mm |
| Dimension L Fix | 3.15 in80 mm |
| Dimension N | 2.440 in62.00 mm |
| Dimension RVV | 0.87 in22.1 mm |
| Dimension SVV | 4.02 in102.1 mm |
| C - Dynamic Load (Basic) | 38100 lb169 kN |
| C0 - Static Load | 39000 lb174 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.86 |
| Y2 - Geometry Factor | 4.25 |
| Oil Lubrication - M/N Seal | 2000 rpm |
| Oil Lubrication - T Seal | 3500 rpm |
| Oil Lubrication - B/C/O Seal | 1650 rpm |
| Grease Lubrication - M/N Seal | 2000 rpm |
| Grease Lubrication - T Seal | 3000 rpm |
| Grease Lubrication - B/C/O Seal | 1550 rpm |
| Float | 0.050 in1.270 mm |
| Shaft Tolerance | 0.0015 in0.038 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0037 |
| Pre Install Clearance Min | 0.075 mm0.0030 in |
| Pre Install Clearance Max | 0.094 mm0.0037 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 23126EJW33C4 | 2.43 | 3.69 | 2.48 | 23126CJW33C4 | 2400 | 2000 |
| ER513C1+40L | ER 513 | - | - | - | - | - |
| YSP 212 SB-2F-75.64 | 110 | 26 | - | 0.000 | 36.000 | 52.700 |
| LME 203245 U AJ | One side Seal (U) | Steel | LME 203245 U AJ | Steel | - | 20 |
| TAM 1420 | 14 | TAM 1420 | 24.00 | 14 | 22 | 13900 |
| E/PF/TRB/65MM | 2.63 | 2.17 | 0.7 | 0.87 | 17.0 lb | 053893778471 |
| BL317ZZ | - | 85 | 2.5 | 3.0 | BL317ZZ | 4.770 |
| QVVFX16V075S | 4.48 | 3.01 | 23 lb10.40 Kg | 0883450366434 0883450366441 0883450366458 0883450366465 0883450366472 0883450366489 0883450366496 08 | 0.0020 in0.051 mm | 75 mm |
| 7019DF FY | 95 | 1.5 | 7019DF FY | 4800 | 3900 | 145 |
| DCS401.0405 | 200 | 365 | DCS401.0405 | 150 | 317 | A3 |
