Single V-Lock Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Round Flange Block
- QVFY16V070S

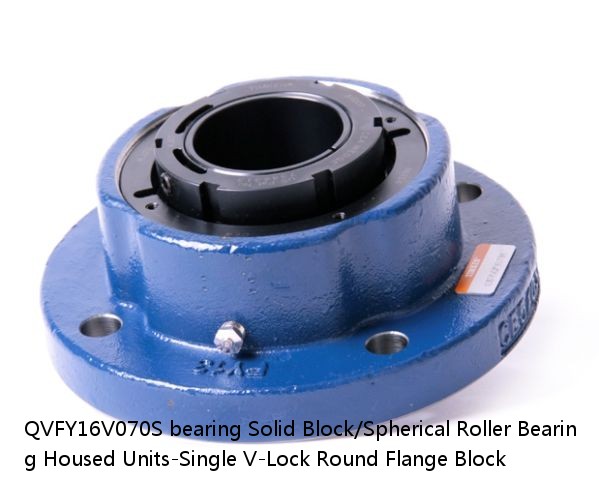

QVFY16V070S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single V-Lock Round Flange Block
QVFY16V070S PDF download| Price： | enquiry |
| Model Number： | QVFY16V070S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 28 lb12.7 Kg |
| UPC Code： | 0883450044325 0883450044394 0883450109574 0883450109611 0883450182188 0883450212250 0883450212632 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22216 |
| Shaft Size | 70 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QVFY16V070SB QVFY16V070SC QVFY16V070SEB QVFY16V070SEC QVFY16V070SEM QVFY16V070SEN QVFY16V070SEO QVFY16V070SET QVFY16V070SM QVFY16V070SN QVFY16V070SO QVFY16V070ST |
| Locking Style | Single V-Lock |
| Weight | 28 lb12.7 Kg |
| Housing Construction | Round Flange |
| UPC Code | 0883450044325 0883450044394 0883450109574 0883450109611 0883450182188 0883450212250 0883450212632 0883450224673 0883450225052 0883450237093 0883450237475 0883450296403 |
| Dimension BC | 7.88 in200.2 mm |
| Dimension C | 4.190 in106.40 mm |
| Dimension D | 6.63 in168.4 mm |
| Dimension E | 5.56 in141.2 mm |
| Dimension F | 9.5 in241.3 mm |
| Dimension H | 0.94 in23.9 mm |
| Dimension J (Bolt Size) | 0.75 in20 mm |
| Dimension L Exp | 3.56 in90.4 mm |
| Dimension L Fix | 3.48 in88.4 mm |
| Dimension N | 3.0000 in76.200 mm |
| Dimension RV | 0.19 in4.8 mm |
| Dimension SV | 3.29 in83.6 mm |
| C0 - Static Load | 62500 lb278 kN |
| C - Dynamic Load (Basic) | 57200 lb254 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1500 rpm |
| Oil Lubrication - T Seal | 2650 rpm |
| Oil Lubrication - B/C/O Seal | 1200 rpm |
| Grease Lubrication - M/N Seal | 1500 rpm |
| Grease Lubrication - T Seal | 2200 rpm |
| Grease Lubrication - B/C/O Seal | 1150 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0043 |
| Eng Internal Radial Clearance - Max | 0.0055 |
| Pre Install Clearance Min | 0.095 mm0.0037 in |
| Pre Install Clearance Max | 0.120 mm0.0047 in |
