Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Round Flange Block
- QAFY20A315S

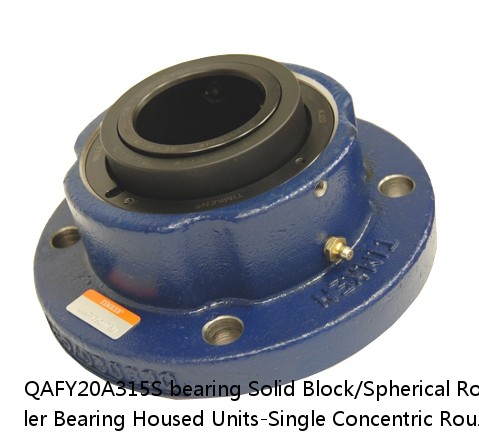

QAFY20A315S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Round Flange Block
QAFY20A315S PDF download| Price： | enquiry |
| Model Number： | QAFY20A315S |
| Weight： | 4.24 |
| Bearing Number： | 2.85 |
| Housing Construction： | 66 lb29.90 Kg |
| UPC Code： | 0883450042406 0883450042413 0883450042444 0883450042451 0883450042468 0883450042475 0883450042482 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 3-15/16 in |
| Shaft Size Type | Imperial |
| Full Timken Part Number | QAFY20A315SB QAFY20A315SC QAFY20A315SEB QAFY20A315SEC QAFY20A315SEM QAFY20A315SEN QAFY20A315SEO QAFY20A315SET QAFY20A315SM QAFY20A315SN QAFY20A315SO QAFY20A315ST |
| Locking Style | Single Concentric |
| Weight | 66 lb29.90 Kg |
| Housing Construction | Round Flange |
| UPC Code | 0883450042406 0883450042413 0883450042444 0883450042451 0883450042468 0883450042475 0883450042482 0883450192064 0883450192224 0883450192385 0883450269421 0883450269582 |
| Dimension BC | 10.75 in273.1 mm |
| Dimension C | 6.0000 in152.4 mm |
| Dimension D | 8.38 in212.9 mm |
| Dimension E | 7.60 in193.0 mm |
| Dimension F | 12.63 in320.8 mm |
| Dimension H | 1.13 in28.7 mm |
| Dimension J (Bolt Size) | 1 in24 mm |
| Dimension KA | 1.63 in41.4 mm |
| Dimension L Exp | 4.95 in125.7 mm |
| Dimension L Fix | 4.87 in123.7 mm |
| Dimension M | 2.97 in75.4 mm |
| Dimension N | 3.810 in96.80 mm |
| Dimension RA | 0.27 in6.9 mm |
| Dimension SA | 4.59 in116.6 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.075 mm0.0030 in |
| Pre Install Clearance Max | 0.120 mm0.0047 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| YCJT 1 15/16 SGT | 6.0 lb2.72 Kg | 188.9 mm7.437 in | 115.9 mm4.563 in | 5210 lbf23200 N | 1 15/16 in49.2 mm | Industrial |
| NRS75LR1SS+1280L (G40g40, B-PT1/8) | No connection | NRS75LR | 40.00 | - | - | - |
| HJ-324120IR-253220 | 39.688 | 1.52 | IR-253220 | HJ-324120 | 8600 | 50.800 |
| 3.5x25.8F | 3.5x25.8F | 1.950 | 25.8 | 3.5 | 0.1 | - |
| E/P4B/TRB/4 7/16/ECC | 1.97 | 1.63 | 0.7 | 0.87 | 91.000 lb | 0883450504386 |
| 6010/2RZ/C3 | 0.25 Kg | 1.000 mm | 16.000 mm | 80.000 mm | 12000 rpm | 8300 rpm |
| QAASN26A500S | 3.90 | 2.62 | 88 lb40.00 Kg | 0883450352642 0883450352659 0883450352666 0883450352673 0883450352680 0883450352697 0883450352703 08 | 0.0050 in0.127 mm | 5 in |
| UCT201J | B-1/4-28UNF | 12 / Normal-duty(2) | 12 | Normal-duty(2) | UCT201J | - |
| 22232EMW33 | 2.57 | 3.91 | 2.62 | 2200 | 1900 | 2.5 mm0.100 in |
| NK24/20A | 0.3 | NK24/20A | 18000 | 24 | 32 | 4.80 |
