Single Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Round Flange Block
- QAFY20A100S

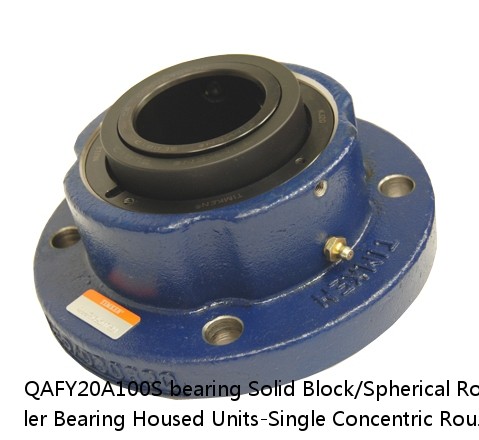

QAFY20A100S bearing | Solid Block/Spherical Roller Bearing Housed Units-Single Concentric Round Flange Block
QAFY20A100S PDF download| Price： | enquiry |
| Model Number： | QAFY20A100S |
| Weight： | 4.24 |
| Bearing Number： | 2.85 |
| Housing Construction： | 66 lb29.90 Kg |
| UPC Code： | 0883450302142 0883450302159 0883450302166 0883450302173 0883450302180 0883450302197 0883450302203 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22220 |
| Shaft Size | 100 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QAFY20A100SB QAFY20A100SC QAFY20A100SEB QAFY20A100SEC QAFY20A100SEM QAFY20A100SEN QAFY20A100SEO QAFY20A100SET QAFY20A100SM QAFY20A100SN QAFY20A100SO QAFY20A100ST |
| Locking Style | Single Concentric |
| Weight | 66 lb29.90 Kg |
| Housing Construction | Round Flange |
| UPC Code | 0883450302142 0883450302159 0883450302166 0883450302173 0883450302180 0883450302197 0883450302203 0883450302210 0883450302227 0883450302234 0883450302241 0883450302258 |
| Dimension BC | 10.75 in273.1 mm |
| Dimension C | 6.0000 in152.4 mm |
| Dimension D | 8.38 in212.9 mm |
| Dimension E | 7.60 in193.0 mm |
| Dimension F | 12.63 in320.8 mm |
| Dimension H | 1.13 in28.7 mm |
| Dimension J (Bolt Size) | 1 in24 mm |
| Dimension KA | 1.63 in41.4 mm |
| Dimension L Exp | 4.95 in125.7 mm |
| Dimension L Fix | 4.87 in123.7 mm |
| Dimension M | 2.97 in75.4 mm |
| Dimension N | 3.810 in96.80 mm |
| Dimension RA | 0.27 in6.9 mm |
| Dimension SA | 4.59 in116.6 mm |
| C0 - Static Load | 113000 lb502 kN |
| C - Dynamic Load (Basic) | 97700 lb435 kN |
| e - Geometry Factor | 0.24 |
| Y1 - Geometry Factor | 2.85 |
| Y2 - Geometry Factor | 4.24 |
| Oil Lubrication - M/N Seal | 1200 rpm |
| Oil Lubrication - T Seal | 2000 rpm |
| Oil Lubrication - B/C/O Seal | 900 rpm |
| Grease Lubrication - M/N Seal | 1200 rpm |
| Grease Lubrication - T Seal | 1600 rpm |
| Grease Lubrication - B/C/O Seal | 900 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0030 |
| Eng Internal Radial Clearance - Max | 0.0047 |
| Pre Install Clearance Min | 0.075 mm0.0030 in |
| Pre Install Clearance Max | 0.120 mm0.0047 in |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 22210EJW33 | 2.78 | 4.23 | 2.84 | 22210CJW33 | 6200 | 5000 |
| 2216 EKTN9 | 6000 | 8500 | 25.500 | 65.000 | 2216 EKTN9 | 140.000 |
| 590653 | 241.3000 | 279.400 | 590653 | R | HDS1 | 15.880 |
| 7318 BEGAP | 4500 | 5.3 | 146 | 166 | 7318 BEGAP | 90.000 |
| 6201/2RZ/C3 | 0.040 Kg | 0.600 mm | 10.000 mm | 32.000 mm | 30000 rpm | 21000 rpm |
| 7219CDT | Standard | 95 | 2.0 | 2.1 | 7219CDT | 6700 |
| 61707 | 0.014 Kg | 0.300 mm | 5.000 mm | 44.0000 mm | Open | 1.9 kN |
| 7304CDB FY | 20 | 0.6 | 1.1 | 24000 | 18000 | 7304CDBFY |
| 23164EMKD1 | 23164EMKD1 | 164.000 | 27.0 | 320 | 5.0 | 880 |
| 7009A5 | 45 | 0.60 | 1.0 | 7009A5 | 250 | 22.0 |
