Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Two-Bolt Pillow Block
- QAAPXT15A070S

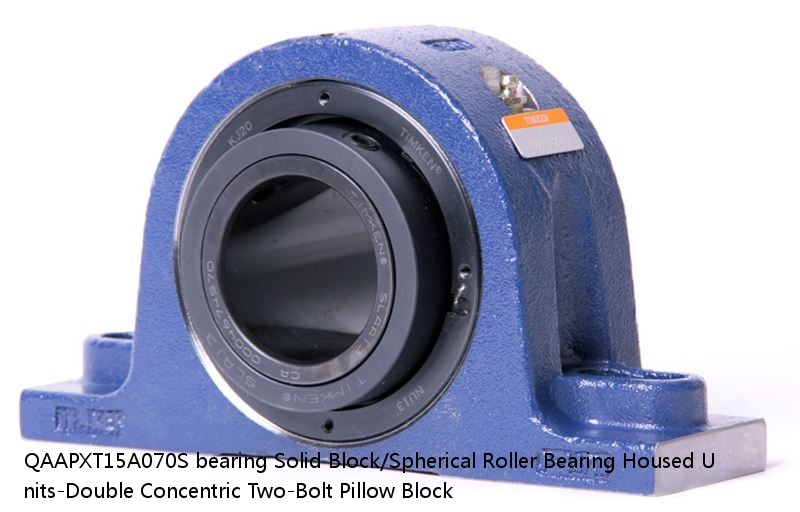

QAAPXT15A070S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Two-Bolt Pillow Block
QAAPXT15A070S PDF download| Price： | enquiry |
| Model Number： | QAAPXT15A070S |
| Weight： | 4.67 |
| Bearing Number： | 3.14 |
| Housing Construction： | 28 lb12.7 Kg |
| UPC Code： | 0883450951760 0883450951777 0883450951784 0883450951791 0883450951807 0883450951814 0883450951821 08 |
| Shaft Size Type： | 0.0020 in0.051 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22215 |
| Shaft Size | 70 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QAAPXT15A070SB QAAPXT15A070SC QAAPXT15A070SEB QAAPXT15A070SEC QAAPXT15A070SEM QAAPXT15A070SEN QAAPXT15A070SEO QAAPXT15A070SET QAAPXT15A070SM QAAPXT15A070SN QAAPXT15A070SO QAAPXT15A070ST |
| Locking Style | Double Concentric |
| Weight | 28 lb12.7 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450951760 0883450951777 0883450951784 0883450951791 0883450951807 0883450951814 0883450951821 0883450951838 0883450951845 0883450951852 0883450951869 0883450951876 |
| Dimension A | 3.50 in88.9 mm |
| Dimension B | 6.84 in173.7 mm |
| Dimension C | 4.29 in109 mm |
| Dimension D Max | 10.44 in265.2 mm |
| Dimension D Min | 9.06 in230.1 mm |
| Dimension F | 13.000 in330.20 mm |
| Dimension G | 2.980 in75.70 mm |
| Dimension H | 1.38 in35.1 mm |
| Dimension J (Bolt Size) | 0.875 in24 mm |
| Dimension L | 3.86 in98.0 mm |
| Dimension M | 2.37 in60.2 mm |
| Dimension RAA | 0.88 in22.4 mm |
| Dimension SAA | 4.74 in120.4 mm |
| C0 - Static Load | 54100 lb240 kN |
| C - Dynamic Load (Basic) | 49900 lb222 kN |
| e - Geometry Factor | 0.22 |
| Y1 - Geometry Factor | 3.14 |
| Y2 - Geometry Factor | 4.67 |
| Oil Lubrication - M/N Seal | 1600 rpm |
| Oil Lubrication - T Seal | 2900 rpm |
| Oil Lubrication - B/C/O Seal | 1300 rpm |
| Grease Lubrication - M/N Seal | 1600 rpm |
| Grease Lubrication - T Seal | 2400 rpm |
| Grease Lubrication - B/C/O Seal | 1300 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0020 in0.051 mm |
| Eng Internal Radial Clearance - Min | 0.0020 |
| Eng Internal Radial Clearance - Max | 0.0031 |
| Pre Install Clearance Min | 0.0020 in0.050 mm |
| Pre Install Clearance Max | 0.0031 in0.080 mm |
| No. | Weight | Bearing Number | Housing Construction | UPC Code | Shaft Size Type | Full Timken Part Number |
|---|---|---|---|---|---|---|
| 7312 BEGBM | 8500 | 3.2 | 76.5 | 104 | 7312 BEGBM | 60.000 |
| LWHD30C1R124BS1 | 8.0 | 45.00 | - | - | - | - |
| 3490/3422 | 1.64 | 29.370 mm1.1563 in | 3400 | 3.3 mm0.130 in | 3.560 mm0.14 in | 1.6 |
| C 2207 TN9 | 13000 | 9500 | - | 35.000 | 9.300 | 80.000 |
| UCFC212 | 11.0 lb5.0 Kg | 087796076099 | 195.00 mm7.677 in | 8138 lbf36200 N | 60 mm | 12.00 mm0.472 in |
| F636ZZ | 6.0 | 0.30 | 34000 | 22 | 0.06 | 4.10 |
| NUP2322E | 110 | 3.0 | 3.0 | 18.500 | 2800 | 2200 |
| 32968E12) | 76.00 | 340 | 3.0 | 3.0 | 32968E12) | 36.00 |
| STS210-5 | BK235A | OR3510A | - | - | - | - |
| 75BNR20HV1V | 75 | 0.6 | 1.1 | 75BNR20HV1V | 764.000 | 27.400 |
