Double Concentric Solid-Block Housed Units
- Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Two-Bolt Pillow Block
- QAAP18A085S

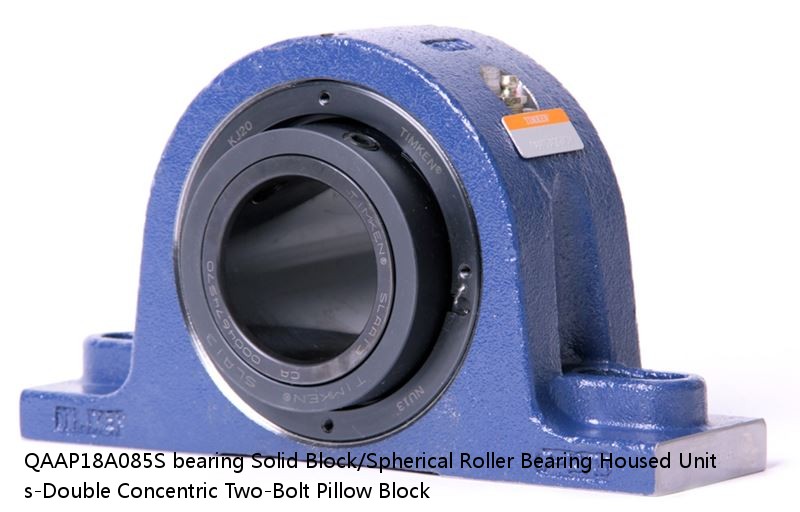

QAAP18A085S bearing | Solid Block/Spherical Roller Bearing Housed Units-Double Concentric Two-Bolt Pillow Block
QAAP18A085S PDF download| Price： | enquiry |
| Model Number： | QAAP18A085S |
| Weight： | 4.31 |
| Bearing Number： | 2.90 |
| Housing Construction： | 45 lb20.40 Kg |
| UPC Code： | 0883450319379 0883450319386 0883450319393 0883450319409 0883450319416 0883450319423 0883450319430 08 |
| Shaft Size Type： | 0.0030 in0.076 mm |
| Engineering Group | Mounted Bearing |
| Bearing Number | 22218 |
| Shaft Size | 85 mm |
| Shaft Size Type | Metric |
| Full Timken Part Number | QAAP18A085SB QAAP18A085SC QAAP18A085SEB QAAP18A085SEC QAAP18A085SEM QAAP18A085SEN QAAP18A085SEO QAAP18A085SET QAAP18A085SM QAAP18A085SN QAAP18A085SO QAAP18A085ST |
| Locking Style | Double Concentric |
| Weight | 45 lb20.40 Kg |
| Housing Construction | Two-Bolt Pillow Block |
| UPC Code | 0883450319379 0883450319386 0883450319393 0883450319409 0883450319416 0883450319423 0883450319430 0883450319447 0883450319454 0883450319461 0883450319478 0883450319485 |
| Dimension A | 3.75 in95.3 mm |
| Dimension B | 7.69 in195.3 mm |
| Dimension C | 5.13 in130.3 mm |
| Dimension D Max | 11.25 in285.8 mm |
| Dimension D Min | 9.38 in238.3 mm |
| Dimension F | 13.50 in342.9 mm |
| Dimension G | 3.410 in86.60 mm |
| Dimension H | 1.88 in47.8 mm |
| Dimension J (Bolt Size) | 0.875 in24 mm |
| Dimension L | 4.3 in109.2 mm |
| Dimension M | 2.59 in65.8 mm |
| Dimension RAA | 0.89 in22.6 mm |
| Dimension SAA | 5.18 in131.6 mm |
| C0 - Static Load | 87200 lb388 kN |
| C - Dynamic Load (Basic) | 79700 lb355 kN |
| e - Geometry Factor | 0.23 |
| Y1 - Geometry Factor | 2.90 |
| Y2 - Geometry Factor | 4.31 |
| Oil Lubrication - M/N Seal | 1400 rpm |
| Oil Lubrication - T Seal | 2400 rpm |
| Oil Lubrication - B/C/O Seal | 1000 rpm |
| Grease Lubrication - M/N Seal | 1400 rpm |
| Grease Lubrication - T Seal | 2000 rpm |
| Grease Lubrication - B/C/O Seal | 1000 rpm |
| Float | 0.083 in2.108 mm |
| Shaft Tolerance | 0.0030 in0.076 mm |
| Eng Internal Radial Clearance - Min | 0.0024 |
| Eng Internal Radial Clearance - Max | 0.0039 |
| Pre Install Clearance Min | 0.0024 in0.060 mm |
| Pre Install Clearance Max | 0.0039 in0.100 mm |
