Type E Tapered Roller Bearing Housed Units

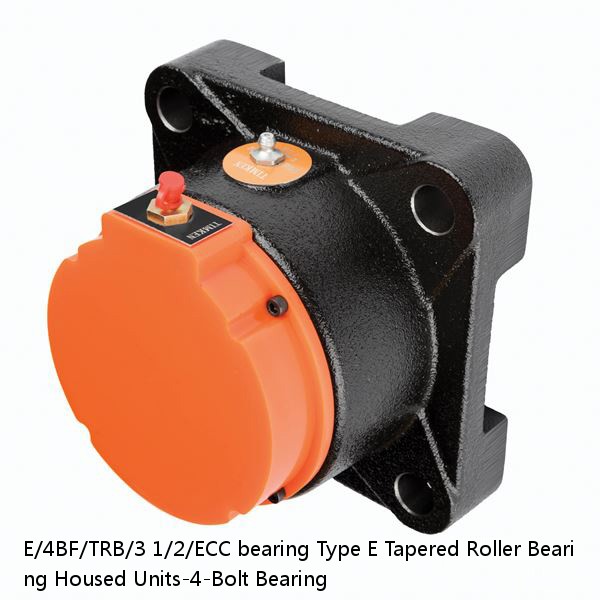

E/4BF/TRB/3 1/2/ECC bearing | Type E Tapered Roller Bearing Housed Units-4-Bolt Bearing

Buy Now
Contact Now

Price：	enquiry
Model Number：	E/4BF/TRB/3 1/2/ECC
Weight：	2.07
Bearing Number：	1.71
Housing Construction：	0.7
UPC Code：	0.87
Shaft Size Type：	50.000 lb

Shaft Size	3.5 in
Shaft Size Type	Imperial
Weight	50.000 lb
UPC Code	0883450503648
Type E Closed Cover Number	EUC-H
Dimension B	5 in
Dimension L	9-1/4 in
Dimension A	4-1/2 in
Dimension J	7 in
Dimension A₂	1/4 in
Bolt Diameter	3/4 in
Dimension A₁	1-7/8 in
Dimension D ¹	7-1/4 in
Dimension d₁	5-17/32 in
Dimension A_c	5.7 in
Dimension d₂	6.7 in
e	0.50
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	1.71
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	2.07
K Factor	1.19
C₉₀ Dynamic Load Rating²	19600 lb
C₀ Static Load Rating	108600 lb
F_a-max Maximum Permissible Thrust Load³	5181 lb
F_r-max Maximum Allowable Slip Fit Radial Load⁴	16000 lb
Max. Speed⁵	1640 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu
