Type E Tapered Roller Bearing Housed Units

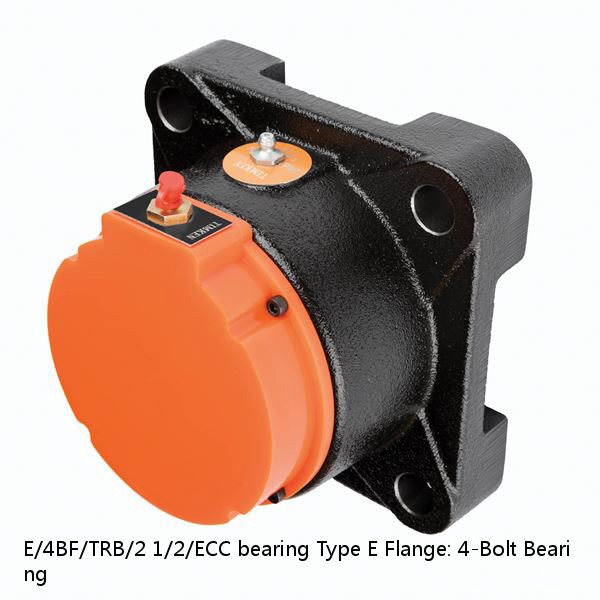

E/4BF/TRB/2 1/2/ECC bearing | Type E Flange: 4-Bolt Bearing

Buy Now
Contact Now

Price：	enquiry
Model Number：	E/4BF/TRB/2 1/2/ECC
Weight：	2.63
Bearing Number：	2.17
Housing Construction：	0.7
UPC Code：	0.87
Shaft Size Type：	19 lb

Shaft Size	2.5 in
Shaft Size Type	Imperial
Weight	19 lb
UPC Code	0883450503563
Type E Closed Cover Number	EUC-F
Dimension B	4 in
Dimension L	6-7/8 in
Dimension A	3-9/16 in
Dimension J	5-3/8 in
Dimension A₂	3/16 in
Bolt Diameter	5/8 in
Dimension A₁	1-1/2 in
Dimension D ¹	5-5/16 in
Dimension d₁	4-1/16 in
Dimension A_c	4.6375 in
Dimension d₂	4.945 in
e	0.40
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	2.17
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	2.63
K Factor	1.51
C₉₀ Dynamic Load Rating²	11600 lb
C₀ Static Load Rating	54000 lb
F_a-max Maximum Permissible Thrust Load³	3454 lb
F_r-max Maximum Allowable Slip Fit Radial Load⁴	9500 lb
Max. Speed⁵	2420 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu
