Type E Tapered Roller Bearing Housed Units

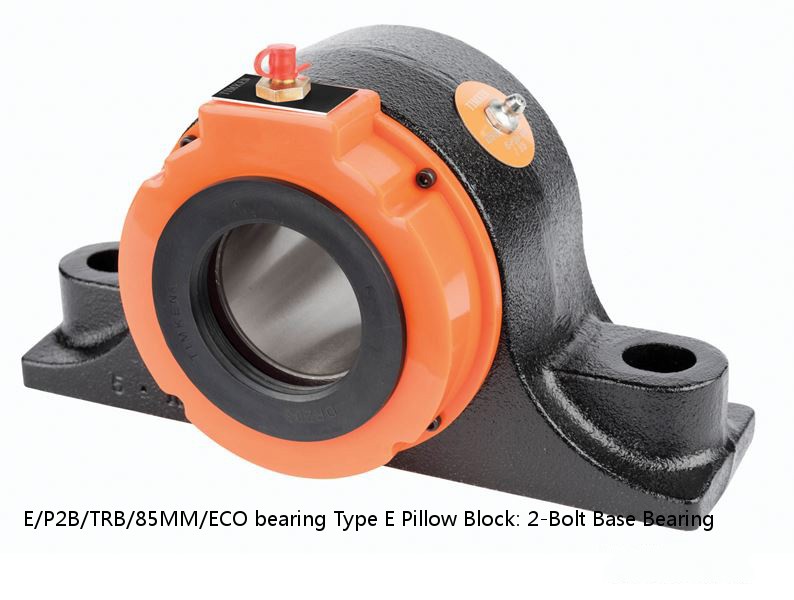

E/P2B/TRB/85MM/ECO bearing | Type E Pillow Block: 2-Bolt Base Bearing

Buy Now
Contact Now

Price：	enquiry
Model Number：	E/P2B/TRB/85MM/ECO
Weight：	2.07
Bearing Number：	1.71
Housing Construction：	0.7
UPC Code：	0.87
Shaft Size Type：	45 lb

Shaft Size	3.346 in85 mm
Shaft Size Type	Metric
Weight	45 lb
UPC Code	0883450507417
Type E Open Cover Number	EUDR-85MM
Dimension B	5 in
Dimension L	14 in
Dimension A	3-1/2 in
Dimension J Min.	10-13/16 in
Dimension J Max.	11-3/16 in
Bolt Diameter	7/8 in
Dimension N	1 in
Dimension N₁	1-3/16 in
Dimension H₁	2-1/4 in
Dimension H₂	7-1/2 in
Dimension d₁	5-17/32 in
Dimension H	3-3/4 in
Dimension A_c	4.8 in
Dimension d₂	6.7 in
e	0.50
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	1.71
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	2.07
K Factor	1.19
C₉₀ Dynamic Load Rating¹	19600 lb
C₀ Static Load Rating	108600 lb
F_a-max Maximum Permissible Thrust Load²	5181 lb
F_r-max Maximum Allowable Slip Fit Radial Load³	16000 lb
Max. Speed⁴	1640 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu

No.	Weight	Bearing Number	Housing Construction	UPC Code	Shaft Size Type	Full Timken Part Number
C 2226 K	3800	2800	-	130.000	91.500	930.000
51216	1.0	1.0	80	51216	2600	0.931
NN3006K	_	30	1.0	1.0	NN3006K	0.198
NU318E	90	3.0	3.0	5.920	3400	2800
22216EJW33C08C3	3.07	4.67	3.14	22216CJW33C08C3	4300	3500
LM 61219	None	Steel	LM 61219	Steel	6	-
7022DF FY	110	2.0	7022DF FY	4200	3300	170
MCM05050H20K00	MCM05050H20K00	500	20	-	-	-
19145D/19282	1.5741 in39.982 mm	19000	0.030 in0.80 mm	Spacer shows standard nominal .01 radii, actual bearing may vary	Imperial	2.8125 in71.438 mm
FSYE-3.1/2N-118	44.45000	2600	0.79375	34.919	104.9780	64.054
