Type E Tapered Roller Bearing Housed Units

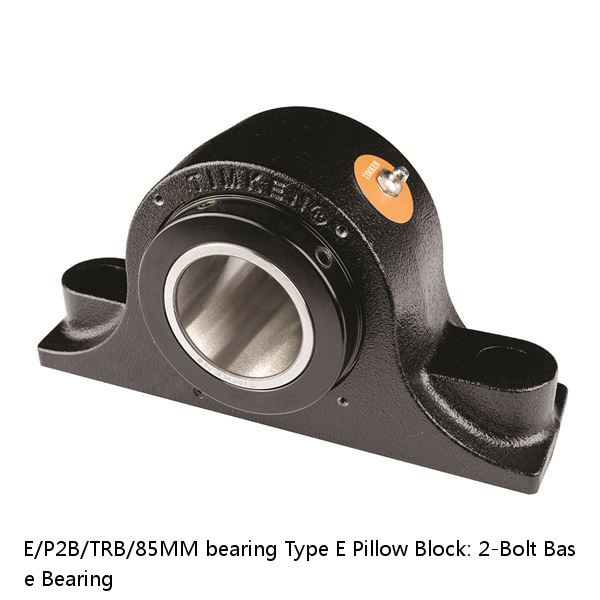

E/P2B/TRB/85MM bearing | Type E Pillow Block: 2-Bolt Base Bearing

Buy Now
Contact Now

Price：	enquiry
Model Number：	E/P2B/TRB/85MM
Weight：	2.07
Bearing Number：	1.71
Housing Construction：	0.7
UPC Code：	0.87
Shaft Size Type：	45 lb

Shaft Size	3.346 in85 mm
Shaft Size Type	Metric
Weight	45 lb
UPC Code	053893775524
Dimension B	5 in
Dimension L	14 in
Dimension A	3-1/2 in
Dimension J Min.	10-13/16 in
Dimension J Max.	11-3/16 in
Bolt Diameter	7/8 in
Dimension N	1 in
Dimension N₁	1-3/16 in
Dimension H₁	2-1/4 in
Dimension H₂	7-1/2 in
Dimension d₁	5-17/32 in
Dimension H	3-3/4 in
e	0.50
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	1.71
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	2.07
K Factor	1.19
C₉₀ Dynamic Load Rating¹	19600 lb
C₀ Static Load Rating	108600 lb
F_a-max Maximum Permissible Thrust Load²	5181 lb
F_r-max Maximum Allowable Slip Fit Radial Load³	16000 lb
Max. Speed⁴	1640 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu

No.	Weight	Bearing Number	Housing Construction	UPC Code	Shaft Size Type	Full Timken Part Number
GS 240380	240	GS 240380	8530.0	240	380	4.0
240/500YMBW33W45A	2.45	3.74	2.51	390	350	5.000 mm0.200 in
HK 4020	HK 4020	7000	6300	6.400	53.000	24.200
NU1014	70	1.0	1.1	0.712	7100	6000
23330EMBW33W800C4	1.6	2.44	1.64	1100	1000	3.00 mm0.120 in
YCJ 50 SGT	6.65 lb3.02 Kg	142.9 mm5.626 in	142.9 mm5.626 in	5210 lbf23200 N	1.969 in50 mm	Industrial
K 81120 TN	2400	1200	630.000	156.000	0.000	11.000
FWJ-182417	FWJ-182417	14.0	18.00	24.00	1770	17400
FNL 510 A + 2210 K + H 310	FNL 510 A + 2210 K + H 31...	179.000	FNL 510 A	60.000	160.000	45.000
UCFA210J	A-1/4-28UNF	50 / Normal-duty(2)	50	Normal-duty(2)	-	-

TIMKEN E-P2B-TRB-85MM TRB Pillow Block Assembly

Home · Bearings; E-P2B-TRB-85MM. FREE SHIPPING on orders over $1. Contiguous U.S. States. #5117382. E-P2B-TRB-85MM. Image for Illustration purposes only.

85mm Two Bolt Type-E Taper Roller Bearing Pillow Block ...

(No reviews yet) Write a Review. SKU: TIM E-P2B-TRB-85MM; UPC: UPC 053893775524; Weight: 45.27 LBS. Shaft size: 85mm; Unit type: Pillow block; Bolt holes: 2 ...

Timken E-P2B-TRB-85MM $1,562.46 TRB Pillow Block Assembly, E ...

Order Timken TRB Pillow Block Assembly, E-P2B-TRB-85MM, E-P2B-TRB-85MM at Zoro.com. Great prices & free shipping on orders over $50 when you sign in or sign ...

Part Number E-P2B-TRB-85MM-ECC, Type E Pillow Block

Type E tapered roller bearing housed units are available in a wide variety of sizes and configurations to meet the requirements of demanding applications.

Timken Co. | E-P2B-TRB-85MM-ECO/ECC | TRB Pillow Block ...

Shop Timken Co. E-P2B-TRB-85MM-ECO/ECC at Applied.com.

TIMKEN E-P2B-TRB-85MM-ECO TRB Pillow Block Assembly ... - eBay

TIMKEN E-P2B-TRB-85MM-ECO TRB Pillow Block Assembly,E-P2B-TRB-85MM-ECO .

E-P2B-TRB-85MM - TIMKEN | Pillow Block Bearings

2 Bolt Pillow Block; 85MM Bore; 95MM Base to Center Height; Concentric Collar Mount; Tapered Roller Bearing; 274.65MM Minimum Bolt Spacing; 284.175MM Bolt ...
