Type E Tapered Roller Bearing Housed Units

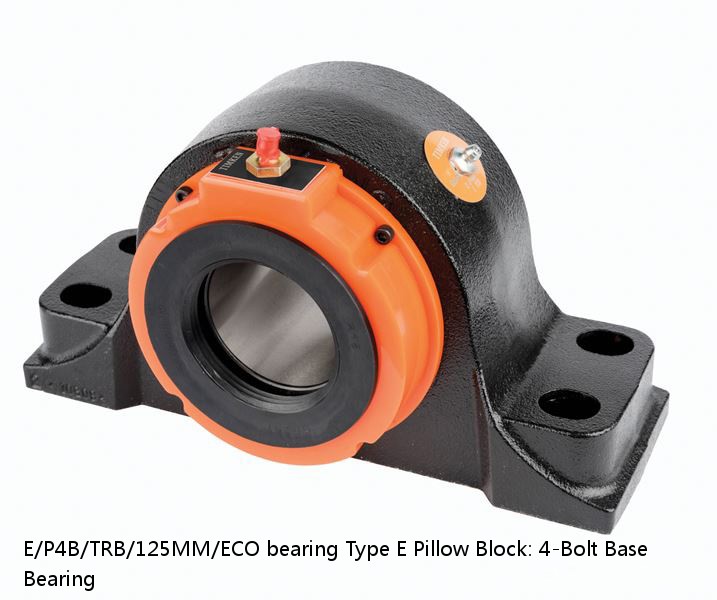

E/P4B/TRB/125MM/ECO bearing | Type E Pillow Block: 4-Bolt Base Bearing

Buy Now
Contact Now

Price：	enquiry
Model Number：	E/P4B/TRB/125MM/ECO
Weight：	2.21
Bearing Number：	1.83
Housing Construction：	0.7
UPC Code：	0.87
Shaft Size Type：	132.000 lb

Shaft Size	4.921 in125 mm
Shaft Size Type	Metric
Weight	132.000 lb
UPC Code	0883450507462
Type E Open Cover Number	EUDR-125MM
Dimension B	7-1/4 in
Dimension L	18-1/2 in
Dimension A	5-1/8 in
Dimension J Min.	15-1/4 in
Dimension J Max.	15-3/4 in
Bolt Diameter	7/8 in
Dimension N	1 in
Dimension N₁	1-1/4 in
Dimension N₂	2-7/8 in
Dimension H₁	3 in
Dimension H₂	10-7/8 in
Dimension d₁	7-1/2 in
Dimension H	5-1/2 in
Dimension A_c	6.769 in
Dimension d₂	10.35 in
e	0.47
X (if F_a/F_r ≤ e)	0.87
Y (if F_a/F_r ≤ e)	1.83
X (if F_a/F_r > e)	0.7
Y (if F_a/F_r > e)	2.21
K Factor	1.27
C₉₀ Dynamic Load Rating¹	45500 lb
C₀ Static Load Rating	266000 lb
F_a-max Maximum Permissible Thrust Load²	6908 lb
F_r-max Maximum Allowable Slip Fit Radial Load³	35000 lb
Max. Speed⁴	1200 rpm
Note	Note: All units have a 1/8" pipe thread grease fittingThe Maximum Permissible Thrust Load applies to conditions of slip fit with set screw mounting or in applications where a large moment loading occu
