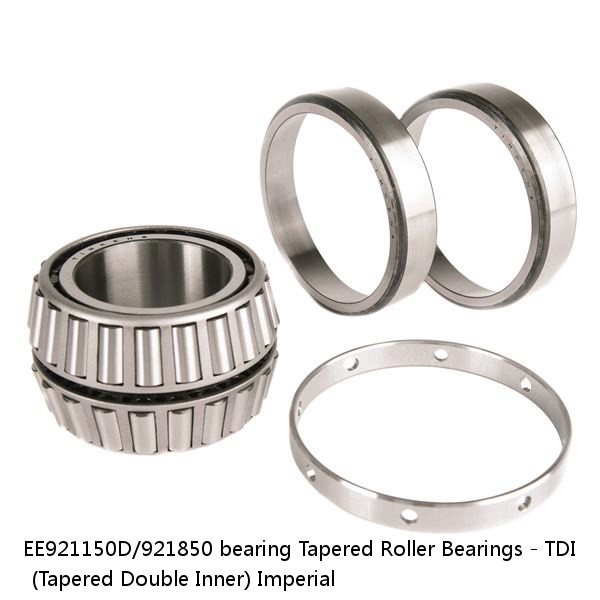

Tapered Roller Bearings - TDI (Tapered Double Inner)

EE921150D/921850 bearing | Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial

Buy Now
Contact Now

Price：	enquiry
Model Number：	EE921150D/921850
Series：	5.4695 in138.925 mm
r - Cup Backface "To Clear" Radius²：	920000
Design Units：	0.060 in1.50 mm
Db - Cup Backface Backing Diameter：	Spacer shows standard nominal .01 radii, actual bearing may vary
da - Cone Frontface Backing Diameter：	Imperial

Series	920000
Cone Part Number	EE921150D
Cup Part Number	921850
Design Units	Imperial
Bearing Weight	191.00 lb86.700 Kg
Cage Type	Pin-Type
Aa - Cage-Cone Backface Clearance	0 in0 mm
d - Bore	11.5000 in292.100 mm
D - Cup Outer Diameter	18.5000 in469.900 mm
B - Double Cone Width	5.6250 in142.875 mm
C - Cup Width	2.2500 in57.150 mm
T - Bearing Width across Cups	5.4695 in138.925 mm
R - Cone Frontface "To Clear" Radius¹	0.060 in1.50 mm
r - Cup Backface "To Clear" Radius²	0.130 in3.3 mm
da - Cone Frontface Backing Diameter	12.36 in313.90 mm
Db - Cup Backface Backing Diameter	17.28 in438.90 mm
Ab - Cage-Cone Frontface Clearance	0.16 in4.1 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)³	88000 lbf391000 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)⁴	591000 lbf2630000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)⁵	153000 lbf681000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	44000 lbf196000 N
K - Factor⁷	2
e - ISO Factor⁸	0.29
Y1 - ISO Factor⁹	2.31
Y2 - ISO Factor¹⁰	3.44
Cg - Geometry Factor¹¹	0.148
Note	Spacer shows standard nominal .01 radii, actual bearing may vary

No.	Series	r - Cup Backface "To Clear" Radius²	Design Units	Db - Cup Backface Backing Diameter	da - Cone Frontface Backing Diameter	D - Cup Outer Diameter
RB650318ULN1K##---+(46.5)	RB65UL	46.5	-	-	-	-
6006NR	30	1.0	6006NR	15000	13000	1.07
7030CDB FY	150	1.1	2.1	4400	3300	7030CDBFY
FSNL 513-611 + 2311 K + HA 2311	FSNL 513-611	80	149	FSNL 513-611 + 2311 K + HA 2311	110	2311 K
ZKFL308-22	A-1/4-28UNF	ZKFL308-22	Heavy-duty(3)	-	1 3/8	-
2MM307WI	1.50 mm0.059 in	1.50 mm0.059 in	38400 rpm	19200 rpm	14.287500 mm9/16 in	METRIC
24024AXW33	120	2.0	5.26	3450	2550	180
NU2216R	80	2.0	2.0	5300	4000	NU2216R
NUP212E	60	1.5	1.5	0.921	6300	5300
SCJT 25	1.058 lb0.48 Kg	123.8 mm4.874 in	69.9 mm2.752 in	1750 lbf7800 N	0.984 in25 mm	Standard
