Tapered Roller Bearings - TDI (Tapered Double Inner)

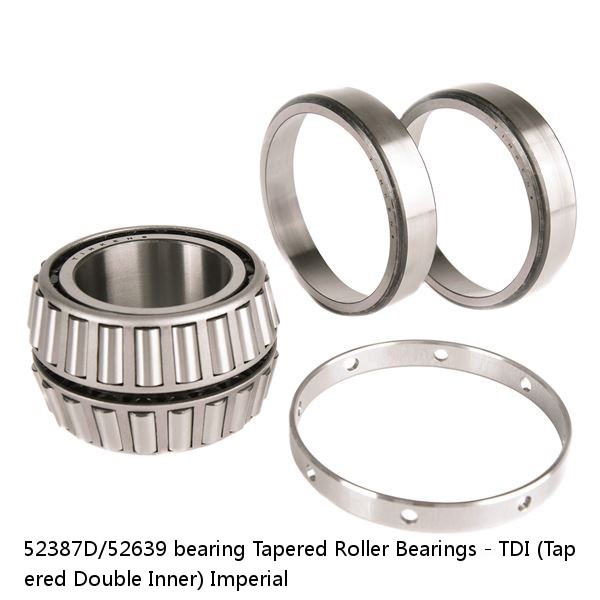

52387D/52639 bearing | Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial

Buy Now
Contact Now

Price：	enquiry
Model Number：	52387D/52639
Series：	3.5311 in89.690 mm
r - Cup Backface "To Clear" Radius²：	52000
Design Units：	0.030 in0.80 mm
Db - Cup Backface Backing Diameter：	Spacer shows standard nominal .01 radii, actual bearing may vary
da - Cone Frontface Backing Diameter：	Imperial

Series	52000
Cone Part Number	52387D
Cup Part Number	52639
Design Units	Imperial
Bearing Weight	14.6 lb6.6 Kg
Cage Type	Stamped Steel
Aa - Cage-Cone Backface Clearance	0 in0 mm
d - Bore	3.8750 in98.425 mm
D - Cup Outer Diameter	6.3750 in161.925 mm
B - Double Cone Width	3.1250 in79.375 mm
C - Cup Width	1.5625 in39.688 mm
T - Bearing Width across Cups	3.5311 in89.690 mm
R - Cone Frontface "To Clear" Radius¹	0.030 in0.80 mm
r - Cup Backface "To Clear" Radius²	0.130 in3.3 mm
da - Cone Frontface Backing Diameter	4.29 in109 mm
Db - Cup Backface Backing Diameter	5.67 in144.00 mm
Ab - Cage-Cone Frontface Clearance	0.12 in3 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)³	13000 lbf57900 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)⁴	87500 lbf389000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)⁵	22700 lbf101000 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	10600 lbf47100 N
K - Factor⁷	1.23
e - ISO Factor⁸	0.47
Y1 - ISO Factor⁹	1.42
Y2 - ISO Factor¹⁰	2.12
Cg - Geometry Factor¹¹	0.152
Note	Spacer shows standard nominal .01 radii, actual bearing may vary
