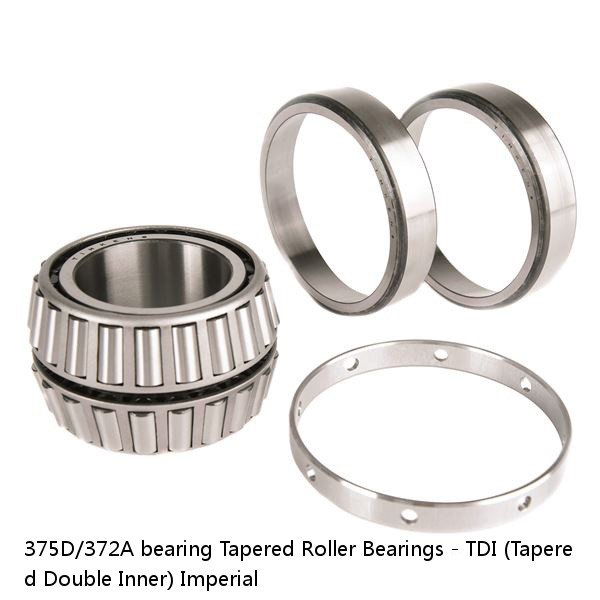

Tapered Roller Bearings - TDI (Tapered Double Inner)

375D/372A bearing | Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial

Buy Now
Contact Now

Price：	enquiry
Model Number：	375D/372A
Series：	2.0939 in53.185 mm
r - Cup Backface "To Clear" Radius²：	375
Design Units：	0.030 in0.80 mm
Db - Cup Backface Backing Diameter：	Spacer shows standard nominal .01 radii, actual bearing may vary
da - Cone Frontface Backing Diameter：	Imperial

Series	375
Cone Part Number	375D
Cup Part Number	372A
Design Units	Imperial
Bearing Weight	3.400 lb1.5 Kg
Cage Type	Stamped Steel
Aa - Cage-Cone Backface Clearance	0 in0 mm
d - Bore	2 in50.8 mm
D - Cup Outer Diameter	3.8125 in96.838 mm
B - Double Cone Width	2.0940 in53.188 mm
C - Cup Width	0.7500 in19.050 mm
T - Bearing Width across Cups	2.0939 in53.185 mm
R - Cone Frontface "To Clear" Radius¹	0.030 in0.80 mm
r - Cup Backface "To Clear" Radius²	0.06 in1.5 mm
da - Cone Frontface Backing Diameter	2.24 in56.90 mm
Db - Cup Backface Backing Diameter	3.39 in86.10 mm
Ab - Cage-Cone Frontface Clearance	0.09 in2.3 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)³	5120 lbf22800 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)⁴	34400 lbf153000 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)⁵	8920 lbf39700 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	2970 lbf13200 N
K - Factor⁷	1.73
e - ISO Factor⁸	0.34
Y1 - ISO Factor⁹	1.99
Y2 - ISO Factor¹⁰	2.97
G1 - Heat Generation Factor (Roller-Raceway)¹¹	37.6
G2 - Heat Generation Factor (Rib-Roller End)	15.4
Cg - Geometry Factor¹²	0.0816
Note	Spacer shows standard nominal .01 radii, actual bearing may vary
