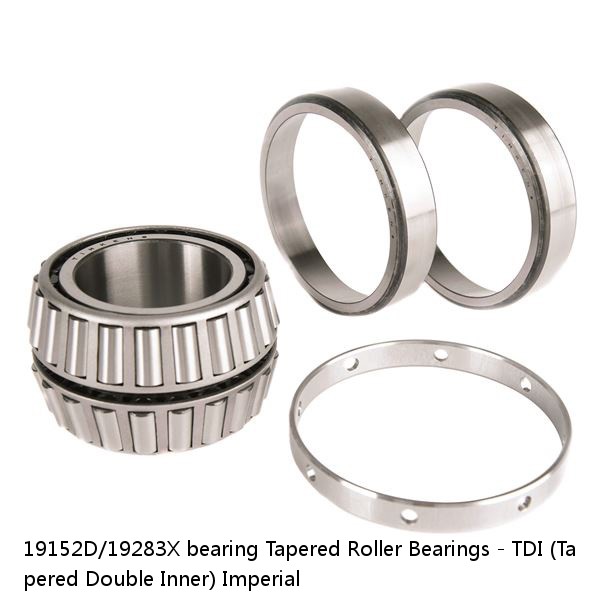

Tapered Roller Bearings - TDI (Tapered Double Inner)

19152D/19283X bearing | Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial

Buy Now
Contact Now

19152D/19283X PDF download

Price：	enquiry
Model Number：	19152D/19283X
Series：	1.5391 in39.093 mm
r - Cup Backface "To Clear" Radius²：	19000
Design Units：	0.030 in0.80 mm
Db - Cup Backface Backing Diameter：	Spacer shows standard nominal .01 radii, actual bearing may vary
da - Cone Frontface Backing Diameter：	Imperial

Series	19000
Cone Part Number	19152D
Cup Part Number	19283X
Design Units	Imperial
Bearing Weight	1.500 lb0.70 Kg
Cage Type	Stamped Steel
Aa - Cage-Cone Backface Clearance	0 in0 mm
d - Bore	1.5 in38.1 mm
D - Cup Outer Diameter	2.8346 in71.999 mm
B - Double Cone Width	1.9370 in49.200 mm
C - Cup Width	0.5625 in14.288 mm
T - Bearing Width across Cups	1.5391 in39.093 mm
R - Cone Frontface "To Clear" Radius¹	0.030 in0.80 mm
r - Cup Backface "To Clear" Radius²	0.08 in2 mm
da - Cone Frontface Backing Diameter	1.71 in43.40 mm
Db - Cup Backface Backing Diameter	2.44 in62.00 mm
Ab - Cage-Cone Frontface Clearance	-0.13 in-3.3 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)³	2960 lbf13100 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)⁴	19800 lbf88300 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)⁵	5150 lbf22900 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	2250 lbf10000 N
K - Factor⁷	1.31
e - ISO Factor⁸	0.44
Y1 - ISO Factor⁹	1.52
Y2 - ISO Factor¹⁰	2.26
Cg - Geometry Factor¹¹	0.0694
Note	Spacer shows standard nominal .01 radii, actual bearing may vary
