Tapered Roller Bearings - TDI (Tapered Double Inner)

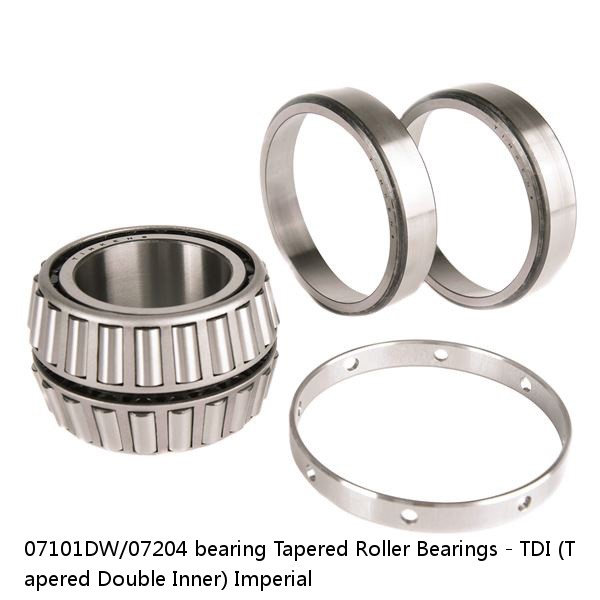

07101DW/07204 bearing | Tapered Roller Bearings - TDI (Tapered Double Inner) Imperial

Buy Now
Contact Now

Price：	enquiry
Model Number：	07101DW/07204
Series：	1.1841 in30.076 mm
r - Cup Backface "To Clear" Radius²：	07000
Design Units：	0.030 in0.80 mm
Db - Cup Backface Backing Diameter：	Spacer shows standard nominal .01 radii, actual bearing may vary
da - Cone Frontface Backing Diameter：	Imperial

Series	07000
Cone Part Number	07101DW
Cup Part Number	07204
Design Units	Imperial
Bearing Weight	0.7 lb0.30 Kg
Cage Type	Stamped Steel
Aa - Cage-Cone Backface Clearance	0 in0 mm
d - Bore	1.0000 in25.400 mm
D - Cup Outer Diameter	2.0470 in51.994 mm
B - Double Cone Width	1.4375 in36.513 mm
C - Cup Width	0.5000 in12.700 mm
T - Bearing Width across Cups	1.1841 in30.076 mm
R - Cone Frontface "To Clear" Radius¹	0.030 in0.80 mm
r - Cup Backface "To Clear" Radius²	0.050 in1.30 mm
da - Cone Frontface Backing Diameter	1.18 in30 mm
Db - Cup Backface Backing Diameter	1.77 in45.00 mm
Ab - Cage-Cone Frontface Clearance	-0.07 in-1.8 mm
C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)³	1600 lbf7130 N
C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)⁴	10800 lbf47900 N
C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)⁵	2790 lbf12400 N
C_a90 - Dynamic Thrust Rating (90 million revolutions)⁶	1100 lbf4900 N
K - Factor⁷	1.45
e - ISO Factor⁸	0.4
Y1 - ISO Factor⁹	1.68
Y2 - ISO Factor¹⁰	2.5
Cg - Geometry Factor¹¹	0.0509
Note	Spacer shows standard nominal .01 radii, actual bearing may vary
